IEC 60068 IEC 60268 ASTM F2101 Headphone Expansion Life Tester Headset Headband Stretch Fatigue Testing Machine

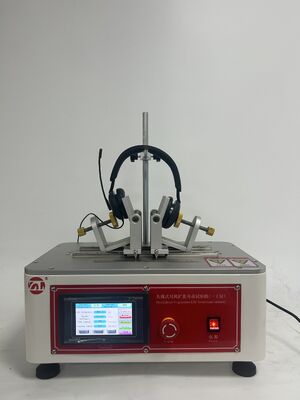

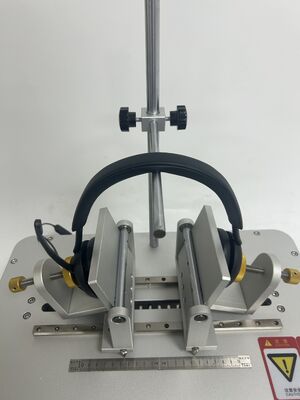

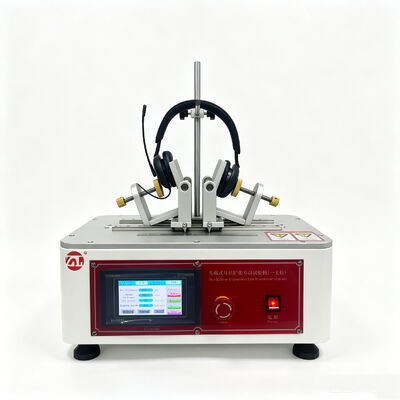

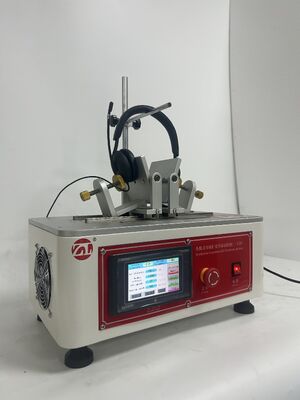

Large Image : IEC 60068 IEC 60268 ASTM F2101 Headphone Expansion Life Tester Headset Headband Stretch Fatigue Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2837

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS2000
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Test Station:	1	Test Speed:	10~60 Times/min (adjustable Knob, LCD Display)
Test Times Counter:	0~99999999 Times	Test Unilateral Stroke:	0~150mm (manually Adjustable)
Test Stroke Display:	Pointer Indicates Scale	Machine Size (approx.):	Length 1000 Width 250 Height 700mm
Working Power Supply:	AC220V, 50Hz

IEC 60068 IEC 60268 ASTM F2101 Headphone Expansion Life Tester Headset Headband Stretch Fatigue Testing Machine

Machine Overview

The Headphone Expansion Fatigue Testing Machine is designed for stretching fatigue strength testing of headphone ear clips. This equipment places both ends of the product on the clamping device that adjusts the test stroke, with preset test cycles. When the set number of cycles is reached, the machine automatically stops for product damage inspection.

This machine complies with the "General Technical Standard for Headphones GB/T14471-93" headphone telescopic fatigue test requirements.

Technical Parameters

Parameter	Value
Test Station	1
Test Speed	10~60 times/min (adjustable knob, LCD display)
Test Counter	0~99,999,999 times (presettable, automatic stop)
Test Unilateral Stroke	0~150mm (manually adjustable)
Test Stroke Display	Pointer indicates scale
Machine Size (approx.)	Length 1000 × Width 250 × Height 700mm
Working Power Supply	AC220V, 50Hz

Product Features

Box body treated with electrostatic baking paint, custom-designed and manufactured for various products. The machine features reasonable design, compact structure, and safe, stable, and accurate operation.
Utilizes precision rods and linear bearings as the main body to prevent uneven vertical inertia during slow speed testing.
Adjustable test speed, cycles, stroke, and height with user-friendly design, allowing customers to configure according to specific requirements.
