Payment & Shipping Terms:
|Maximum Test Height:||300~1800mm (can Be Set)||Maximum Drop Weight:||2kg|
|Minimum Separation Height:||300mm||Counter:||0~999999|
|Use Air Source:||≥0.5MPa||Machine Size:||W700xD1000xH2400mm|
|Machine Weight:||150kg||Two Unit Conversions:||N, KG|
|Machine Power Supply:||AC220V 50Hz 3A|

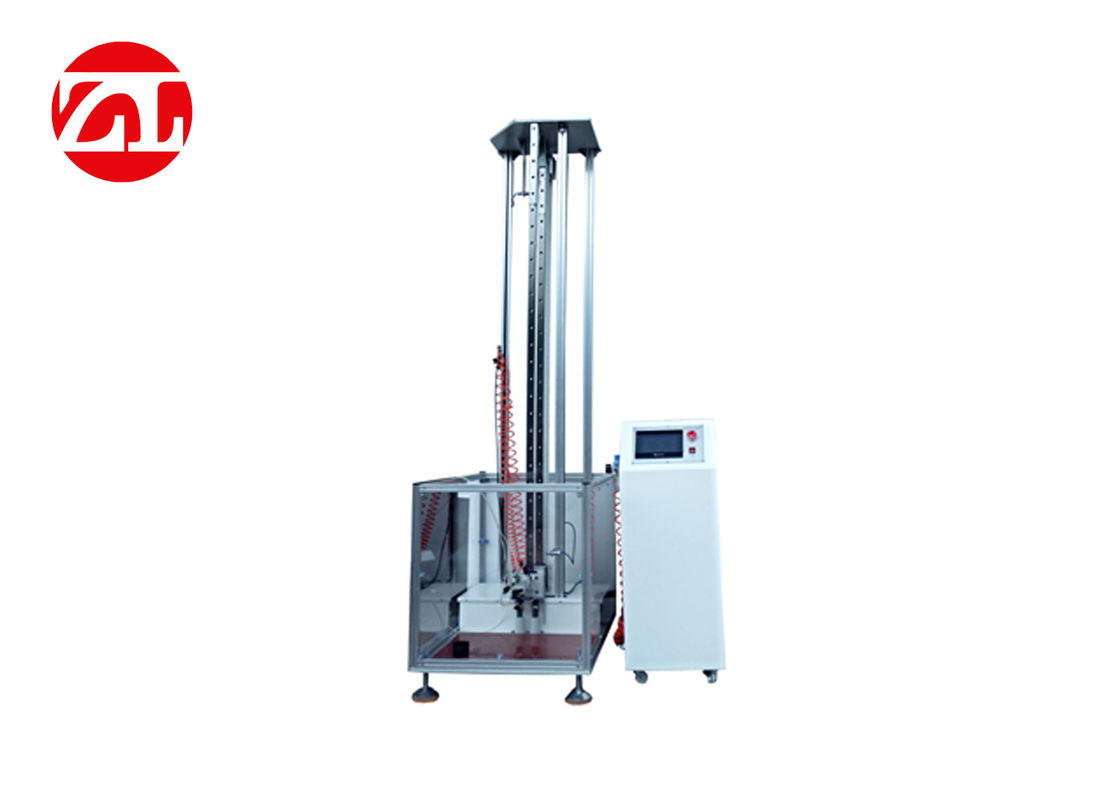

Mobile Phone Drop Impact Testing Machine,
Directional Drop Impact Testing Machine
Mobile Phone Directional Drop Testing Machine Drop Impact Testing Equipment
This machine is designed to evaluate the impact on product performance after the customer may accidentally drop the product during actual use. It is suitable for: small consumer electronic products such as mobile phones, PDAs, telephones, electronic dictionaries, CDs, MP3s, adapters, batteries, etc. Do the original attitude and acceleration drop test;
|1. Maximum test height||300~1800mm (can be set)|
|2. Maximum drop weight||2kg|
|3. Minimum separation height||300mm|
|5. Use air source||≥0.5MPa|
|6. Machine size||W700xD1000xH2400mm|
|7. Machine weight||150kg|
|8. Machine power supply||AC220V 50Hz 3A|
1. The machine adopts electric components for test height adjustment, fast positioning and durable use;
2. This machine adopts Japanese SMC vacuum suction cup to absorb products to achieve multi-angle drop, suitable for product testing: diamond, angle and surface testing;
3. The drop angle of the product is close to the test setting angle;
4. The drop test can automatically rise to the set height, which is convenient for operation and improves the test efficiency;
5. All pneumatic components are made of Japanese SMC high-quality components for durable use;
6. A variety of drop boards are available: steel plate, transparent acrylic board, wood board), cement board, marble board, suitable for multi-national test requirements (standard product marble drop medium)
7. Automatic counting (drop times) function;
8. Touch screen control, parameter setting is simple and convenient
1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.
2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.
3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.
4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.
5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.
1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;
2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron/Philips and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
1. We promise 14 month’s warranty and lifetime maintenance.
2. During the warranty time, any components broken is FREE to change, and we offer FREE picture, video instruction after your purchasing of our machine.
3. All machine is sent with a packing list, operation instruction(paper file), warranty certificate(with valid date) and other accessories.
We pack machine with plastic wrap (water proof), then pack with poly wood board,
cystosepiment inside the board and machine for fixture.
