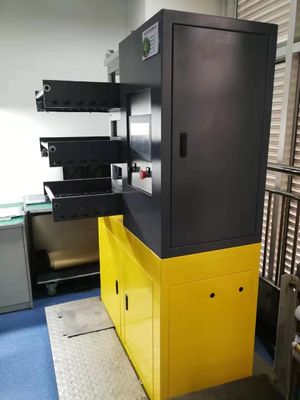

Rubber Silicone Vacuum Compression Molding Machine

Rubber Silicone Vacuum Compression Molding Machine
Rubber Silicone Vacuum Compression Molding Machine
video play

Large Image :  Rubber Silicone Vacuum Compression Molding Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO, CE
Model Number: ZL-3022
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Rubber Silicone Vacuum Compression Molding Machine is packaged within wooden case.
Delivery Time: 15- 20 days
Supply Ability: 30 set per month
Contact Now
Detailed Product Description
Product Name: Rubber Silicone Vacuum Compression Molding Machine Capacity: 30T
Power Supply: 380V/ 440v 60hz Cooling: Water Cooling
Oil Pressure System: The Proportion Hydraulic Pressure Current Capacity Loop Circuit Control Cooling Type: Tap Water Cooling/compressor Cooling Water(optional)
Pressure Surface: Mirror Chrome Plated Pressure Material: SKD Chromium-molybdenum Alloy
Highlight:

380V Vacuum Compression Molding Machine

,

Rubber Silicone Vacuum Compression Molding Machine

,

380V Rubber Compression Molding Machine

\n

\n
\n
Rubber Silicone Vacuum Compression Molding Machine
\n
Product Documentation
\n
\nDownload Product Catalogue\n
\n
\nZL-3022 Laboratory Hydraulic Press Tester Technical Brief\n
\n
\n
\n
Product Overview
\n
\n The Hydraulic Rubber Plate Vulcanization Press Machine is designed for placing materials in casting molds and clamping them between electric-heating flat plates. This process applies precise pressure and temperature to shape materials, conduct testing, and establish the foundation for mass production ingredient formulation.\n
\n
\n
\n
Technical Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Product NameHydraulic Rubber Plate Vulcanization Press Machine
Capacity10T/20T/30T/50T (Customizable)
Temperature RangeRoom temperature ~300\u2103
Temperature ControllerLED Indicator, press key set input, value indicate output
TimerLED display, time range 0.1S~99min~9.9hr
Heating TypeElectrical Heating module
Hot Pressure Plate300*300mm, 350*350mm
Cold Pressure Plate300*300mm, 350*350mm
Distance of Pressure Plate100mm
Pressure MaterialSKD chromium-molybdenum alloy
Pressure SurfaceMirror chrome plated
Cooling Temperature ScopeRoom temperature ~+5\u2103
Cooling TypeTap water cooling/compressor cooling water (optional)
Oil Pressure SystemProportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can pre-select one, two times pressure and time
Oil Cylinder StrokeMax 200mm
Oil Cylinder Speed11mm/s
Pressure Gauge0~350kg/sq.cm
Power10.6HP
Dimension W*D*H1200*600*1500 mm
Power SupplyAC380V, three phase 60hz
WeightAbout 750 kg
\n
\n
\nRubber Silicone Vacuum Compression Molding Machine\n
\n
\n
Company Profile
\n
\n Zhongli Instrument Technology Co., Ltd is an instrument expert headquartered in Dongguan, Guangdong, China. Since 2007, we have specialized in manufacturing laboratory testing equipment.\n
\n
\n With over 14 years of experience, our products have established strong market presence in Europe, America, and Southeast Asia, reaching more than 95 countries worldwide. Our equipment is particularly favored by European and American markets.\n
\n
\n Beyond standard machines, our R&D team provides custom solutions tailored to specific requirements. Share your needs with us, and we will deliver satisfactory results.\n
\n
\n
\nZhongli Instrument Technology Manufacturing Facility\n
\n
\n
Service Advantages
\n
    \n
  • Comprehensive R&D and design department capable of providing both standard technological machines and custom solutions
    • \n
  • Over 50 years of manufacturing experience with advanced machinery and sophisticated craftsmanship
    • \n
  • Two specialized laboratories: Environmental laboratory and Physical laboratory
    • \n
  • Adequate monthly inventory to meet urgent customer requirements
    • \n
  • Annual sales exceeding 1,000,000 USD; 30,000\u33a1 manufacturing base with 120 technicians, capable of handling large budget projects
    • \n
\n
\n
\n
Technical Excellence
\n
    \n
  • SUS Stainless plates precision-cut using advanced laser machines for accuracy
    • \n
  • Anti-rust electrostatic painting on all machine exteriors
    • \n
  • Premium imported electronic components: ABB, industrial automation, high-performance, Saginomiya, Danfoss, Emkarate, Omron
    • \n
  • High-quality imported compressors: BOEK, TECUMSEH
    • \n
  • Designed for extended service life exceeding 10 years
    • \n
\n
\n
\n
After-Sales Service
\n
    \n
  • 14-month warranty with lifetime maintenance support
    • \n
  • Free replacement of any broken components during warranty period
    • \n
  • Comprehensive picture and video instruction support after purchase
    • \n
  • Complete documentation including packing list, operation instructions (paper file), warranty certificate with valid date, and accessories
    • \n
\n
\n
\n
Packaging Standards
\n
\n Machines are securely packaged with waterproof plastic wrap, reinforced with poly wood boards. Internal cystosepiment fixtures ensure stability and protection during transit.\n
