SATRA TM49 Shoes Material Heat Resistance Contact Tester For Leather Fabric Textiles

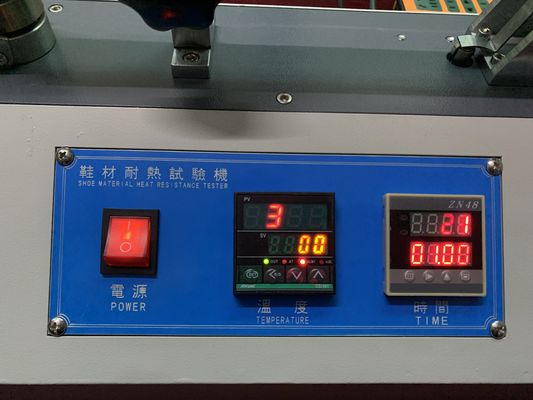

Large Image : SATRA TM49 Shoes Material Heat Resistance Contact Tester For Leather Fabric Textiles

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7055

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	SATRA TM49 Shoes Material Heat Resistance Contact Tester For Leather Fabric Textiles is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	SATRA TM49 Shoes Material Heat Resistance Contact Tester For Leather Fabric Textiles	Test Temperature:	100-300 Degrees
Self-calibration Platform Diameter:	Self-calibration Platform Diameter	Load:	(1200±50)g
Volume:	(300x18.5x30)mm	Weight::	About 14kg
Power Supply:	220v
Highlight:	SATRA TM49 Heat Resistance Contact Tester , EN344 Heat Resistance Contact Tester , SATRA TM49 Shoe Testing Machine

SATRA TM49 Shoes Material Heat Resistance Contact Tester For Leather Fabric Textiles

Equipment Overview

This machine is used to test the high temperature capability of sole materials (including rubber and polymer). The sample and heat source (heated metal block) contact at a fixed pressure for approximately 60 seconds, allowing observation of specimen surface damage such as softening, melting, cracking, etc. Results are evaluated according to standards to determine specimen qualification.

Compliance Standards

SATRA TM49, EN344, LD32, GB/T20991-2007, ISO20344

Technical Specifications

Parameter	Specification
Specimen	70×30×3-7mm (soles)
Self-calibration Platform Diameter	40mm
Load	(1200±50)g
Temperature Control Range	100-300°C
Volume	(300×18.5×30)mm
Weight	Approximately 14kg
Power Supply	AC220V
