Product Details:
Payment & Shipping Terms:
|
Product Name: | Lab Automatic Abrasion Test Equipment For Leather Shoes Sole | Power: | AC220V / 50HZ |
---|---|---|---|
Specimen: | 120 * 6.5 * 3mm | Load: | 250g, 500g, 1000g |
Machine Dimension: | 30 * 43 * 30cm | Weight: | 35kg |
Testing Disk Speed: | 0-70 Adjustable | Key Words: | Taber Abrasion |
High Light: | Leather Shoe Sole Abrasion Test Equipment,DIN-53754 Abrasion Test Equipment,TAPPI-T476 Abrasion Test Machine |

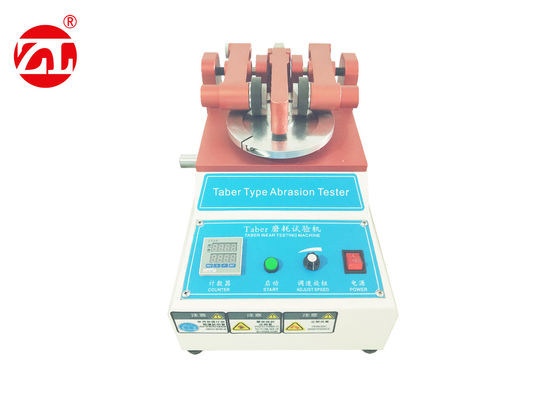

Lab Automatic Abrasion Test Equipment For Leather Shoes Sole
Tester summary:
This tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Corresponding standard :
DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470
Applicable industry:
It used in testing the performance of leather products, such as suitcases, carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; commodity inspection, arbitration, and technical supervision department.
Testing reference:
paint | brick | plywood | plastic |
CS10 CS17 |
CS17 |
S32 S33 |
CS17 H18H22 |
Machine Specifications:
Grinding wheel model | H18,H22,CS10,CS17,S32,S33 |
Abrasion wheel Center distance | 63.5mm |
Abrasion wheel and specimens distance | 37, 38 mm |
Test Speed | 60 R.P.M |
Test Load | 250g, 500, 1000g |
Times setting | 0 ~ 999999 times setting automatically shut down |
Auxiliary accessories | specimen cutters, grinding wheels, pre-sanding paper, vacuum cleaner. |
Weight | 20 kg |
Power | AC 110V/60Hz or 220V/50HZ 2A |
Computational formula:
Abrasion index computational formula=Abrasion loss weight ×100
Test turnover number
Machine Details
