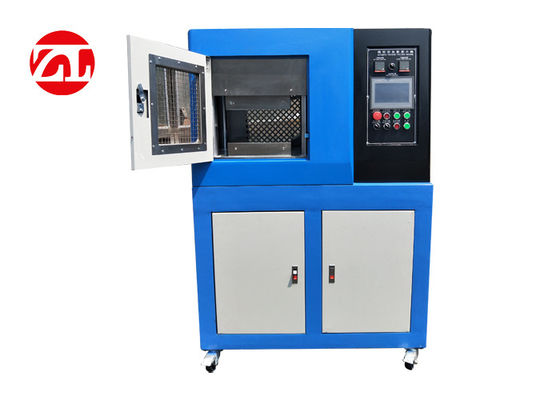

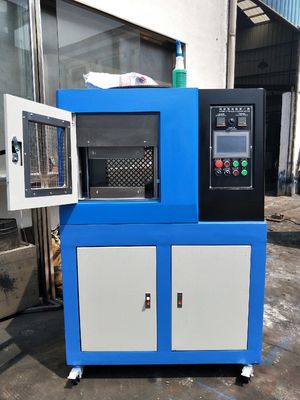

AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber

AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber
AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber
video play

Large Image :  AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3022
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Lab 10Ton Rubber Flat Vulcanizing Machine Hydraulic Hot Press Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 sets / month
Detailed Product Description
Product Name: Lab 10Ton Rubber Flat Vulcanizing Machine Hydraulic Hot Press Machine Temp. Range: Room Temp. ~300℃
Pressure Surface: Mirror Chrome Plated Cold Pressure Plate: 300×300mm ( Can Be Customized)
Hot Pressure Plate: 300×300mm ( Can Be Customized) Oil Pressure System: Out Constant Speed Rate Control Mode, Can P Reelection One, Two
Pressure Gauge: 0~350kg/sq.cm
High Light:

Lab Flat Vulcanizing Machine

,

Rubber Flat Vulcanizing Machine

,

AC380V Hydraulic Hot Press Machine



Lab 10Ton Rubber Flat Vulcanizing Machine Hydraulic Hot Press Machine



Offset sulfuric acid:

1. Equipped with auto electric control,easy to operate.
2. Degree of the heating platen: 22°/17°/ 20° (rectangle and other degree is optional)

3. The user can also replace the water pump as needed.

4. High pressure pump replaces the three cylinder piston pump driven by single-phase motor, which has the characteristics of compact structure, small volume, high reliability and good maintenance performance.

5. The hydraulic system includes air cooling or water cooling, and the solid plate can ensure the uniformity of temperature and maximum pressure.

ZL-3022 Laboratory Hydraulic Press Tester; Lab Ho...



Instruction:

Place the material in the casting form and apply pressure and temperature between the electric heating plates as a basis for casting, testing and mass production.



Technical Parameters:



Capacity 10~50ton ( Option )
Temp. Range Room temp. ~300℃
Temp. Controller PLC touch screen, the value indicate output
Timer LED display,time range 0.1S~99min~9.9hr
Heating type Electrical Heating module
Hot pressure plate 300×300mm ( can be customized)
Cold pressure plate 300×300mm ( can be customized)
Distance of pressure plate 100mm
Pressure material SKD chromium-molybdenum alloy
Pressure surface Mirror chrome plated
Cooling temperature scope Room temp. ~+5℃
Cooling type Tap water cooling/compressor cooling water(optional)
Oil pressure system The proportion hydraulic pressure current capacity loop circuit control
system, the GPY oil pump driver high performance electroencephalographic
matching high accuracy non resistance piston of oil cylinder carry
out constant speed rate control mode, can p reelection one, two
times pressure and time.
Oil cylinder stroke Max 200mm
Oil cylinder speed 11mm/s
Pressure gauge 0~350kg/sq.cm
power 10.6HP
Dimension W×D×H 1000×500×1500 mm
Power supply 3∮,AC380V,20A
Weight About 658kg



Product Description



AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber 0

AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber 1



AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber 2



We,Dongguan Zhongli instrument Technology Co., Ltd. Which Located in Dongguan, Guangdong, China. It is a collection development, research, production and sales of test equipment technology company.



Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.



Promises: Two year free maintenance of all equipment, maintenance of life, welcome to consult the discussion!



AC380V Lab Hydraulic Hot Press Flat Vulcanizing Machine For Rubber 3



FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 95 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
