PLC Touch Screen Rubber Press Automatic Flat Vulcanizing Machine

Large Image : PLC Touch Screen Rubber Press Automatic Flat Vulcanizing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3022

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Rubber Curing Press Plate Vulcanizer Vulcanizing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Rubber Curing Press Plate Vulcanizer Vulcanizing Machine	Temp. Range:	Room Temp. ～300℃
Oil Pressure System:	Times Pressure And Time	Pressure Surface:	Mirror Chrome Plated
Weight:	About 658kg	Cold Pressure Plate:	300×300mm ( Can Be Customized)
Hot Pressure Plate:	300×300mm ( Can Be Customized)
Highlight:	Rubber Press Flat Vulcanizing Machine , Automatic Flat Vulcanizing Machine , PLC Touch Screen Automatic Vulcanizing Machine

PLC Touch Screen Rubber Press Automatic Flat Vulcanizing Machine

Product Overview

The Rubber Press Flat Vulcanizer Automatic Vulcanizing Machine is a high-performance industrial equipment designed for rubber processing, casting, testing, and mass production applications.

Key Features

Industrial aluminum alloy electrical controllers - compact, lightweight design
Hydraulic systems providing stable, consistent pressure
High and uniform heating temperature distribution
High-pressure pump with single-phase motor drive - compact, reliable, and easily maintainable
Hydraulic system includes air or water cooling options
Solid plate construction ensures temperature uniformity and maximum pressure capability

ZL-3022 Laboratory Hydraulic Press Tester Documentation

Operation Instructions

Place material in the casting form and apply controlled pressure and temperature between the electric heating plates for casting, testing, and mass production applications.

Technical Parameters

Capacity	10~50 ton (Optional)
Temperature Range	Room temperature ~ 300℃
Temperature Controller	PLC touch screen with value indication output
Timer	LED display, time range 0.1S ~ 99min ~ 9.9hr
Heating Type	Electrical Heating module
Hot Pressure Plate	300×300mm (can be customized)
Cold Pressure Plate	300×300mm (can be customized)
Distance of Pressure Plate	100mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	Mirror chrome plated
Cooling Temperature Scope	Room temperature ~ +5℃
Cooling Type	Tap water cooling/compressor cooling water (optional)
Oil Pressure System	Proportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver with high performance matching high accuracy non-resistance piston oil cylinder for constant speed rate control mode, with pre-selection for one or two times pressure and time settings
Oil Cylinder Stroke	Max 200mm
Oil Cylinder Speed	11mm/s
Pressure Gauge	0~350 kg/sq.cm
Power	10.6 HP
Dimension W×D×H	1000×500×1500 mm
Power Supply	3∮, AC380V, 20A
Weight	Approximately 658kg

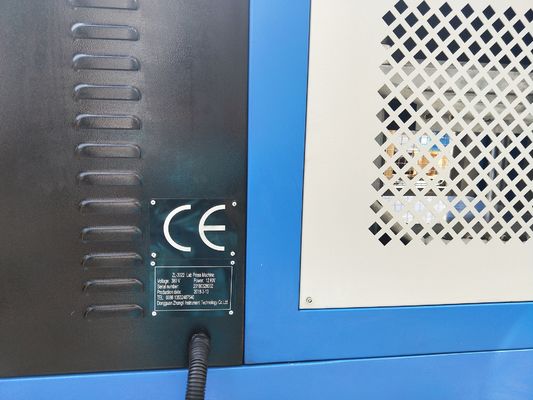

Product Images

About Dongguan Zhongli Instrument Technology Co., Ltd.

Located in Dongguan, Guangdong, China, we are a technology company specializing in the development, research, production, and sales of test equipment.

With over 14 years of experience, our products have been successfully sold to more than 95 countries across Europe, America, and Southeast Asia, with particular favor in European and American markets.

Service Commitment: Two-year free maintenance on all equipment, lifetime maintenance support. We welcome your inquiries and discussions!

Frequently Asked Questions

1. How to choose the most suitable Mechanical Equipment?

Our professional team will provide the best recommendations based on your specific testing requirements and required specifications.

2. Do you accept customization service?

Yes, we offer both standard machines and customized solutions tailored to your specific requirements. Please share your needs with us.

3. Do you have customers in our country before?

Our testing machines have been sold to over 95 countries worldwide, including USA, Canada, Russia, UK, Italy, Germany, European countries, India, Pakistan, Philippines, Singapore, Malaysia, Thailand, Vietnam, Korea, Saudi Arabia, Brazil, and many others.

4. How about your warranty?

We provide a standard two-year warranty. During this period, we offer technical support and replacement parts. If necessary, our engineers can provide on-site service.

5. What is the order process?

Inquiry → Quotation → Communication → Order Confirmation → Deposit Payment → Production → Testing and Debugging → Balance Payment → Packing → Delivery → Customer Receiving → After-Sales Service

6. How to install and use the product?

Each product includes comprehensive English operating instructions and instructional videos for easy installation and operation.
