Computer Controlled Rubber Non Rotor Rheometer Machine

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

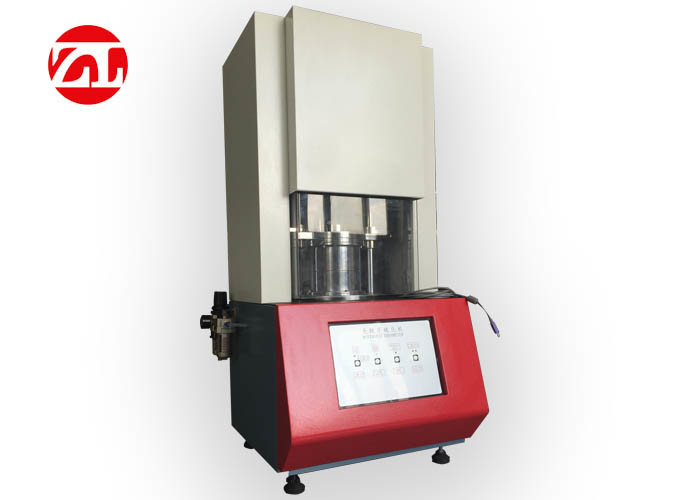

Computer Controlled Rubber Non Rotor Rheometer Machine

Computer Controlled Rubber Non Rotor Rheometer Machine
Computer Controlled Rubber Non Rotor Rheometer Machine
video play

Large Image :  Computer Controlled Rubber Non Rotor Rheometer Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE, ISO
Model Number: ZL-3001
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Packaged in wooden case (fumigation free)
Delivery Time: 7-10 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 SET PER MONTH
Detailed Product Description
Power: Electronic Air Compression: 0.5Mpa~0.65Mpa
Weight: 250kg Torque Range: 0-5N.M,0-10N.M,0-20N.M
Dimension: 131*56*62cm Display: Windows 7 + Software
High Light:

Non Rotor Rheometer Machine

,

Computer Controlled Rheometer Machine

,

Computer Controlled Rubber Rheometer

Computer Controlled Rubber Non-Rotor Testing Rheometer Machine



Use:

This machine is designed by GB/T16584<Rubber——use no-rotor rheometer to test vulcanization characteristic,can meet ISO6502 standard,and can test the data of Italy standards about T10,T30,T50,T60,T90.This machine can be use test unvulcanized rubber characteristic,and test out the suitable vulcanizing time. Used imported intelligent digital temperature controller,easy adjustment,wide temperature controlling range,high accuracy,good stability and reproducibility.Use computer to control the machine and store the test data and print the data.Test curve can be compared and amplification in software.



Main functions:

Using computer control, after setting the parameters on the computer, directly control the test parameters of the vulcanizer. Real-time display of vulcanization curve and temperature curve, storage of test results, can adjust the comparison of different test results and display them in different colors.



It adopts single-chip microcomputer control, which includes: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical interlocking components. Among them, the temperature measurement and control circuit is composed of a temperature controller, platinum resistance, and a heater, which can automatically track changes in the power grid and ambient temperature, and automatically correct PID parameters to achieve rapid and accurate temperature control. The data acquisition system and the electromechanical chain complete the automatic detection of the torque signal of the rubber vulcanization process, and automatically display the temperature and set value in real time. After vulcanization, automatic processing, automatic calculation, printing of vulcanization curve and process parameters. It displays vulcanization time, vulcanization torch, and has various audible prompts.


Features:

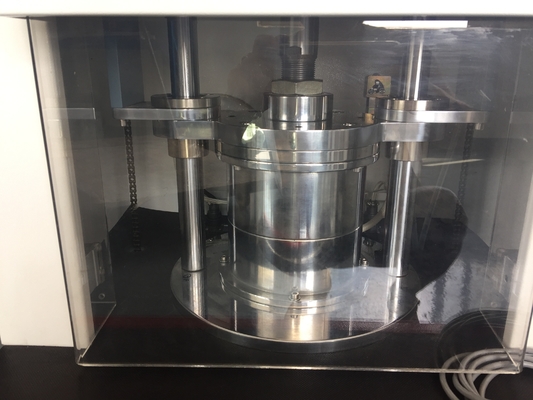

1. This instrument is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2. The instrument development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor). The technical leadership of international new trend.
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate
4. Using imported high-precision sensors



Download Brief:

ZL-3001 No Rotor Rheometer.pdf



The main technical parameters:



Model Without Rotor Rheometer Rubber Testing Machine
Temperature tester Room temperature to 200°C
Temperature accuracy ≤ ±0.3°C
Temperature resolution 0.1°C
Torque range 0-5N.M,0-10N.M,0-20N.M
Torque resolution: 0.001NM
Motor rotating speed 100 times / min
Rotor range Adopt 4 setting: 25, 50, 100, 200lbs per inch
Die cavity frequency 1.7Hz
Sway angle ±0.5°, ±1°, ±3°
Air compression 0.5Mpa--0.65MPa
Ambient temperature 0-35°C
Test result

Printing:date,time,temperature,vulcanization curve,temperature

curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2.

Dimension 131*56*62cm
Power Single phase, 220V±10%, 50Hz
Display Windows 7 + software
Weight

250kg
