ASTM D1646 No Rotor Mooney Viscometer Of Rubber

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

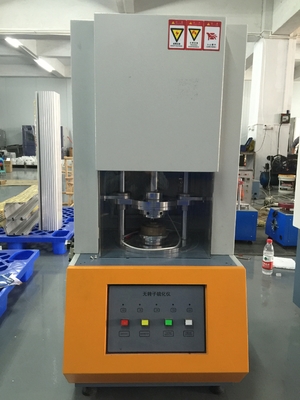

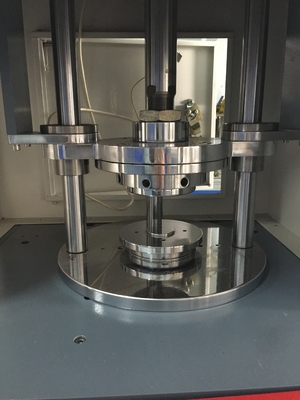

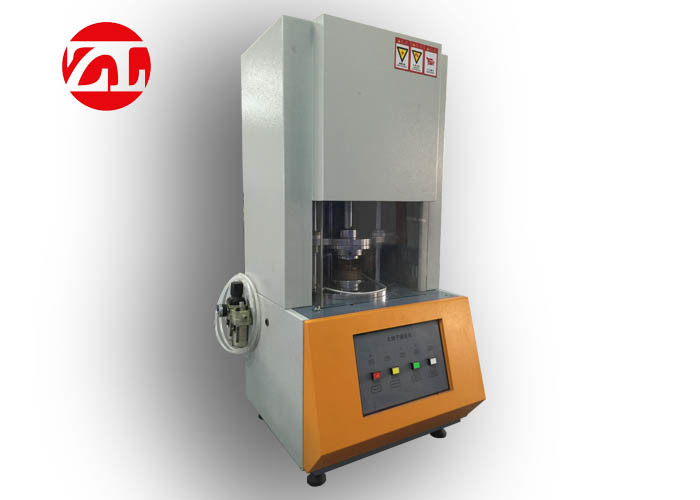

ASTM D1646 No Rotor Mooney Viscometer Of Rubber

ASTM D1646 No Rotor Mooney Viscometer Of Rubber
ASTM D1646 No Rotor Mooney Viscometer Of Rubber
video play

Large Image :  ASTM D1646 No Rotor Mooney Viscometer Of Rubber

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE, ISO
Model Number: ZL-3001
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Packaged in wooden case (fumigation free)
Delivery Time: 7-10 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 SET PER MONTH
Detailed Product Description
Power: Electronic Torque Resolution: 100 Times/min
Air Compression: 0.5Mpa~0.65Mpa Warranty: 12 Month
Weight: 250kg Torque Range: 0-5N.M,0-10N.M,0-20N.M
Ambient Temperature: 0-35°C
High Light:

Mooney Viscometer Of Rubber

,

ASTM D1646 Mooney Viscometer

,

ASTM Rubber Rheometer

ASTM D1646 Rubber Rheometer Mooney Viscometer



Use:

This machine is designed by GB/T16584<Rubber——use no-rotor rheometer to test vulcanization characteristic,can meet ISO6502 standard,and can test the data of Italy standards about T10,T30,T50,T60,T90.This machine can be use test unvulcanized rubber characteristic,and test out the suitable vulcanizing time. Used imported intelligent digital temperature controller,easy adjustment,wide temperature controlling range,high accuracy,good stability and reproducibility.Use computer to control the machine and store the test data and print the data.Test curve can be compared and amplification in software.



Software Introduction

A. Testing standardization:GB/T16584ISO6502:1991 and ASTMD5289-95.

B. Specimen information:set the material no,like “RBS6".User can set the title freely.

C. High quality function:You can modify the testing time when in operation.For example:When you set 20min to finish vulcanization,when in testing to 11min,you find the rubber material can finish vulcanization in 9min,and no need to test longer.You can modify the test time in software to 9min,the test will stop in 9min,and will draw integrity vulcanization curve and caculate the test data.If you test 18min,19min will finish,but it doesn't finish vulcanization,need to continue testing,or the testing data will be wrong.At this time,you can set the test time longer,modify 25min or more,Until the vulcanization finishing.It can time and rubber material.

D. Graph curve scale automatic optimization(Auto Scale),after testing,software can according to test data size to adjust Y scale,according to 0—5 Mv 0—10Mv 0-20Mv,making testing curve more beautiful,for different material,you can also compare the data in software.



Download Brief:

ZL-3001 No Rotor Rheometer.pdf



The main technical parameters:



Model Without Rotor Rheometer Rubber Testing Machine
Temperature tester Room temperature to 200°C
Temperature accuracy ≤ ±0.3°C
Temperature resolution 0.1°C
Torque range 0-5N.M,0-10N.M,0-20N.M
Torque resolution: 0.001NM
Motor rotating speed 100 times / min
Rotor range Adopt 4 setting: 25, 50, 100, 200lbs per inch
Die cavity frequency 1.7Hz
Sway angle ±0.5°, ±1°, ±3°
Air compression 0.5Mpa--0.65MPa
Ambient temperature 0-35°C
Test result

Printing:date,time,temperature,vulcanization curve,temperature

curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2.

Dimension 131*56*62cm
Power Single phase, 220V±10%, 50Hz
Display Windows 7 + software
Weight

250kg



The No Rotor Rheometer is the most widely used instrument in the rubber processing industry to control rubber quality, rapid inspection and basic rubber research. It provides accurate data for the optimal rubber formula combination, and can accurately measure the scorch time, positive vulcanizer time, and vulcanization. Index and parameters such as maximum and minimum torque.
