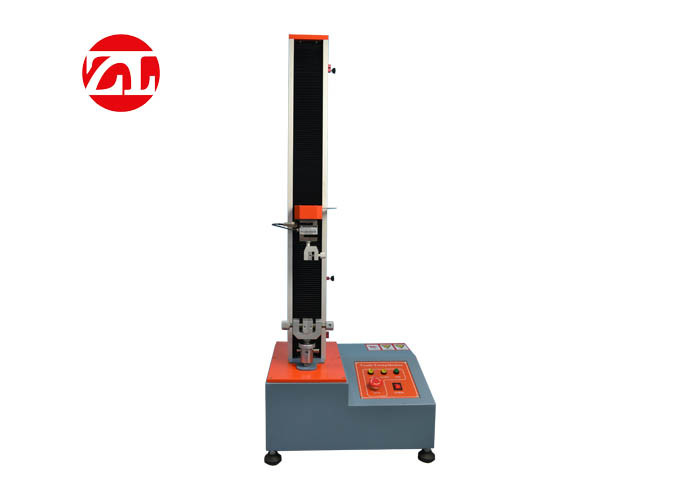

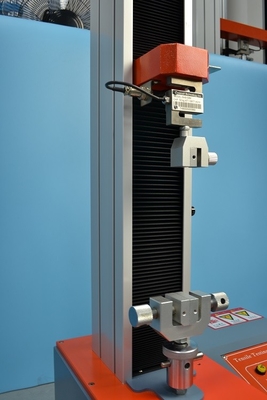

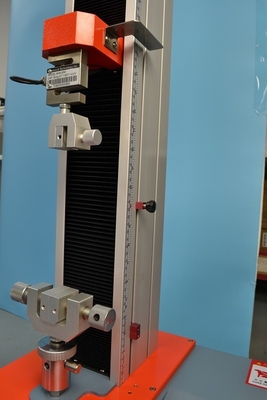

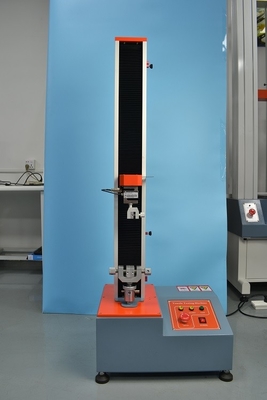

Desktop Mini Microcomputer Control Tensile Testing Machine

Desktop Mini Microcomputer Control Tensile Testing Machine
Desktop Mini Microcomputer Control Tensile Testing Machine
video play

Large Image :  Desktop Mini Microcomputer Control Tensile Testing Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-8004C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Single Pole Desktop Mini Computer Tensile Testing Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets
Detailed Product Description
ZL-8004C Desktop Computer Servo Testing Machine(s...: ZL-8004C ZL-8004C: 200N,500N,1KN, Option,
Accurate Grade: 1grade/0.5 Grade Load Sensor: Basic Configuration:sensor(max Load): One
Testing Platform Moving Device: Fast /slow Two Speeds To Control,can Jog Machine Size: 45x58x135cm (length*width*height)
High Light:

Microcomputer Control Tensile Testing Machine

,

Desktop Mini Tensile Testing Machine

,

Desktop Tensile Testing Equipment

Single Pole Desktop Mini Computer Tensile Testing Machine



Equipment summary:







ZL-8004C desktop computer servo testing machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test non-metallic and metallic material which the load is less than 1kN, it has the parameters, such as stress, strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.



Main function

This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.



ZL-8004C Desktop computer servo testing machine(s...



Main features:

1. Adopt Panasonic servo motor, the beam moves up and down to test the load through the transmission.

2. The whole control system is safe and high reliability

3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation, testing speed and testing curves.

4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curve can be transferred out after the test, you can know the testing process through the testing curve, or compare with others curves, or amplify the curve.

5. the testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.

6. Has limit protection, overload protection, emergency stop and other safe protective functions.



Tensile testing machine is also known as universal material testing machine. The universal testing machine is a mechanical afterburner testing machine used for static load, tension, compression, bending, shear, tearing, peeling and other mechanical properties of instruments and equipment for various materials. It is suitable for plastic sheets, pipes, Various physical and mechanical performance tests of profiled materials, plastic film, rubber, wire and cable, steel, glass fiber and other materials are developed for material testing, teaching research, quality control and other indispensable testing equipment. Tensile machine fixtures are used as instruments. An important component, different materials require different fixtures, which is also an important factor in whether the test can be carried out smoothly and the accuracy of the test results.

Desktop Mini Microcomputer Control Tensile Testing Machine 0



Technical parameters:

Model ZL-8004C
Maximum load 200N,500N,1KN, option,
Accurate grade 1grade/0.5 grade
Effective measuring range 0.2%~100%/0.4%~100%
Measuring accuracy the value ±1%/ the value ±0.5%
Tester resolution Max load 1/200000,constant the resolution
Load sensor

Basic configuration:sensor(max load): one

Extended configuration:can add more sensors

Effective tensile stroke 500mm(can be increased the height according to customer’s requirement)
Range of testing speed 0.001~500mm/min
Accuracy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control,can jog
Return back Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 45x58x135cm (length*width*height)
Motor Panasonic AC servo motor and drive
Power supply 220V,50HZ
power 0.4KW(depending on different demand of force, using different motor)
weight (about)75 KG
Unit KG, N, LB, TON, can be exchanged.
