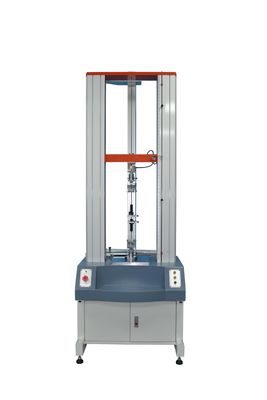

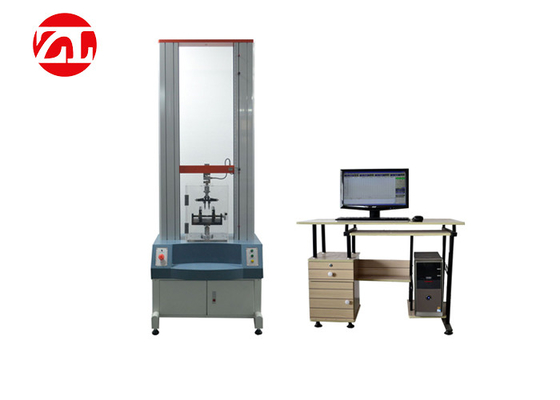

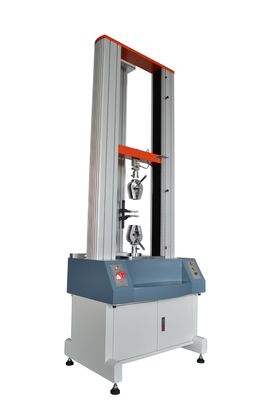

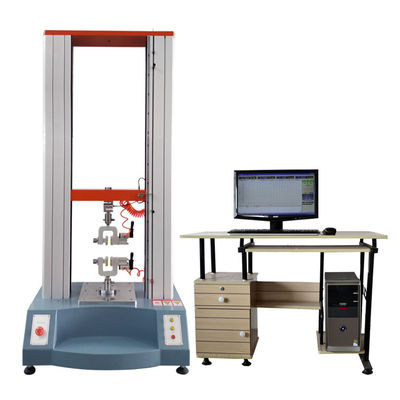

5 10 20 30 50 100KN Tensile Testing Machine Double Column Type

5 10 20 30 50 100KN Tensile Testing Machine Double Column Type
5 10 20 30 50 100KN Tensile Testing Machine Double Column Type
video play

Large Image :  5 10 20 30 50 100KN Tensile Testing Machine Double Column Type

Product Details:
Place of Origin: China
Brand Name: Zhongli
Certification: CE,ISO
Model Number: ZL-8001A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 5KN 10KN 20KN 30KN 50KN 100KN Tensile Testing Machine Double Column Computer Servo is packaged within wooden case.
Delivery Time: 10 days after order
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Model Number:: 5KN 10KN 20KN 30KN 50KN 100KN Tensile Testing Machine Double Column Computer Servo Power:: Electronic
Max Load:: 5KN,10KN,20KN Accurate Grade:: 1 % /0.5 %
Effective Measuring Range:: Ing Range: 0.2%~100%(1grade)/0.4%~100%(0.5 Grade) Measuring Accuracy:: Display The Value ±1%/Display The Value ±0.5%
Range Of Testing Speed: 0.001~200mm/min ; 500mm/min (1000mm/min Is Option) Accuracy Of Displacement Measurement: Tolerance: ±0.5%/ Tolerance: ±0.2%
High Light:

100KN Tensile Testing Machine

,

50KN Tensile Testing Machine

,

Tensile Testing Equipment Double Column Type

5KN 10KN 20KN 30KN 50KN 100KN Tensile Testing Machine Double Column Computer Servo




1. Equipment summary:



ZL-8001 2T Computer Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1ton.



2. Corresponding standard :

<<GB/T16491-1996 electronic universal testing machine>>



3..Technical parameter:

Model ZL-8001 2T Computer Universal Testing Machine
Max load 5KN,1ton,2 ton
Accurate grade 1 % /0.5 %
Effective measuring range 0.2%~100%(1grade)/0.4%~100%(0.5 grade)
Measuring accuracy Display the value ±1%/Display the value±0.5%
Tester resolution Max load 1/200000,regardless of inside and outside,constant the resolution
Load sensor Basic configuration:sensor(max load): one;
Extended configuration:can add more sensors
Effective testing width 390mm(can be widened according to customer’s requirement )
Effective Tensile stroke 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)
Range of testing speed 0.001~200mm/min ; 500mm/min (1000mm/min is option)
Accuracy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system(according to the requirements) Min span :10mm, Max range of deformation :800mm;
Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm
Accuracy of measured deformation Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation)
safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control,can jog
Return back Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 80x55x220cm(length*width*height)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Power supply 220V,50HZ,0.4kw
Machine weight 250kg
Units Kg, N, LB, TON, can be exchanged




4. Software features:



The software description about Computer servo testing machine

A. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.

B. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.

C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)

D. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.

E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.

F. Test results can be output in EXCEL format.

G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.

H. Software has a capability that can output the before data.



The accessories about Computer servo testing machine

A. warranted book within one-year and operating instructions.

B. a group of fixture

C. testing software for tensile machine.

D. a set of brand computer, color printer

items can be tested in the Computer servo testing machine

Common items: ( display data and calculation )

● tensile stress ● tensile strength

● tensile strength ● rate of elongation at break

● fixed stress ● rate of stress at break

● stress strength ● tear strength

● the value of force at any point ●rate of elongation at any point

● pull-out strength ● force of adhesion and the peak of force
