| Product Name: | Fabric / Textile / Toys Industrial Conveyor Belt Metal Detectors Wholesale | Detecting Sensitivity: | Diameter 0.8 Mm To 2.5mm Iron Ball |
|---|---|---|---|
| Alarm Method: | Buzzer,Lamp | Conveying Speed: | 24m/min(50Hz),32m/min(60Hz) |
| Power: | AC220V | Rated Output: | 60W |
| Body Size: | 185cm(L)*105cm(W)*95cm(H) | Key Words: | Industrial , Needle , Conveyor |
| High Light: | Fabric Conveyor Belt Metal Detector,Textile Conveyor Belt Metal Detector,Toys Conveyor Metal Detector |
||

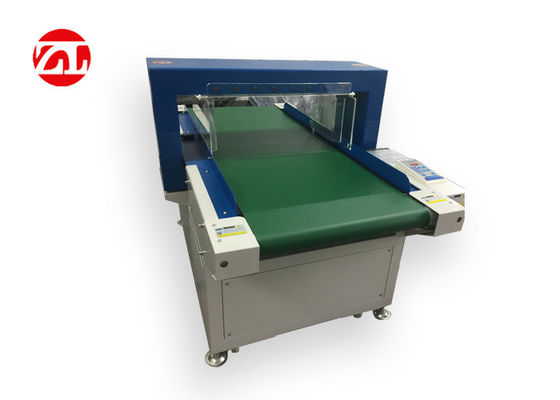

Fabric / Textile / Toys Industrial Conveyor Belt Metal Detectors Wholesale
Download Brief:
ZL-4003A Industrial Textile Conveyor Belt Metal D...
Overview:
Textile Needle Detector ,In the principle of using magnetic,A microcomputer touch screen interface operation system, combined functions of conventional anti-interference and reinforced anti-interference needle detectors, electronic detection data recording system and qualityguarantee for enterprise product needle detection management and product quantity management. Detect textiles, toys residual broken needle.To meet the safety requirements.
Feature:
1. High sensitivity and strong interference immunity.
2. Light structure and move conveniently.
3. Various of specifications of inspection window which can be chosen at will according to customers' needs
4. Quick conveying speed, applicable to pipeline operation.
5. Matches the pipeline operation or automatic control device.
Application:
Mainly used for detecting ferrous metal that load or drop in raw materials and products in the field of toy costume, shoe making, chemical industry, leather, knitting etc.
Clothes, textile, bra, baby products, shoes, socks, gloves, etc detection lost pin and scrap iron kind of impurities in the products., ensure product without iron impurity pollution,
supply reliable quality guarantee.
Quick detail:
Apply self-developed patent technology.
Equipped with latest microchip , reliable with excellent performance.
Sensitive and anti-jamming.
Automatically digital signal processing through the whole process.
Easy operate , history data can be processed and saved automatically before system switched off.
Self-designed high-frequency power switch.
Integrated and optimized design for reducing components , replaced electronic system by computer control , lower malfunction.
Microcomputer controlled motor to extend working life.
Precise counter device.
| Technical Parameters | ||||||
| Detection width | Detection height | Detection standard | Conveying speed | Power supply | Power | Weight |
| 600mm | 120mm 150mm 200mm |
Feø≥1.0mm Feø≥1.2mm Feø≥1.5mm |
25~30 m/min |
220V | 100W | 180KG --- 200KG |
| Note | The sensitivity level is determined by the detection height (ie, channel) to determine the highest detection accuracy. The higher the gantry, the lower the sensitivity. The above corresponding height and detection standards are the detection results in the empty machine state; the height and width of the detection channel can be customized according to requirements! | |||||
| Detecting Sensitivity: | Diameter 0.8 mm to 2.5mm iron ball |
| Sensitivity adjust: | 1-10 level |
| Detecting Width: | 40-180cm ( It can be customized) |
| Detecting Height: | 10-30cm |
| Alarm method: | Buzzer,Lamp |
| Conveying speed: | 24m/min(50Hz),32m/min(60Hz) |
| Power: | AC220V |
| Rated output: | 60W |
| Body size: | 185cm(L)*105cm(W)*95cm(H) |
.
