Electric Bicycle Reflector And Lighting Experimental Tester With Standard A Light Source

Electric Bicycle Reflector And Lighting Experimental Tester With Standard A Light Source
Electric Bicycle Reflector And Lighting Experimental Tester With Standard A Light Source

Large Image :  Electric Bicycle Reflector And Lighting Experimental Tester With Standard A Light Source

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3506
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Electric Bicycle Reflector and Lighting Experimental Tester with Standard A light Source is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Electric Bicycle Reflector And Lighting Experimental Tester With Standard A Light Source Test Environment: Test Darkroom With A Length Of 12 Meters
Standard Light Source: Class A Luminaries Specified In CIE Publication NO.15; Receiver: CIE1931 Standard Chroma Observer's Spectral Sensitivity, Aperture Angle Should Not Be More Than 10 ';
Test Turntable: Maximum Lifting Height: 500mm, Free Rotation, Speed: 1 RPM; Reflection Distance: No Less Than 10 Meters
Equipment Power Supply: 220V 50HZ. Key Words: Reflector Lighting Experimental
High Light:

GB31887 Experimental Lighting Tester

,

GB17761 Lighting Tester

,

Electric Bicycle Reflector Tester

Electric Bicycle Reflector and Lighting Experimental Tester with Standard A light Source





Product Overview:



It is a device suitable for road riding of electric bicycles to detect reflectors of production products.



Comply with standards:



GB17761-2018 Technical Specification for Safety of Electric Bicycles, GB31887-2005 Bicycle Reflector and other relevant standards.



Basic Principles:

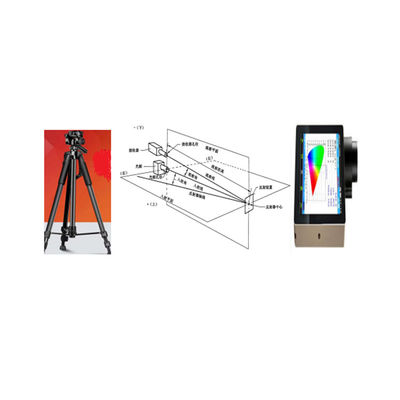

The integrated beam of standard A light source is used to illuminate the product in the mode of parallel light, and then the beam is reflected back to the receiver at the included Angle specified by the standard for spectral analysis.



Main Parameters:





Test environment



Test darkroom with a length of 12 meters



Test instruments

CIL test system for reflectors, light source containing A, receiver, turntable and light distribution performance test system for lamps
Standard light source Class A luminaries specified in CIE publication NO.15;

Receiver

CIE1931 standard chroma observer's spectral sensitivity, aperture Angle should not be more than 10 ';

Lighting system

It is equipped with adjustable triangle bracket, which can fix A light source and receiver, and adjust the Angle by 0 to 15°;
Test turntable Maximum lifting height: 500mm, free rotation, speed: 1 RPM;



Reflection distance





No less than 10 meters



Equipment power supply





220V 50HZ.
