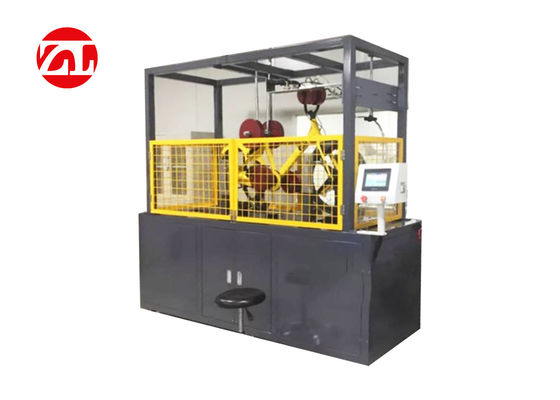

GB17161 Computer Control Electronic Bicycle Braking Performance Equipment

GB17161 Computer Control Electronic Bicycle Braking Performance Equipment
GB17161 Computer Control Electronic Bicycle Braking Performance Equipment GB17161 Computer Control Electronic Bicycle Braking Performance Equipment

Large Image :  GB17161 Computer Control Electronic Bicycle Braking Performance Equipment

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3501
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: GB17161 Computer Control Electronic bicycle Braking Performance Equipment is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: GB17161 Computer Control Electronic Bicycle Braking Performance Equipment Wheel Adjustment: The Maximum Distance Is 300mm
Roller Material: Simulated Cement Pavement Braking Way: Pneumatic
Nozzle Specifications: Stainless Steel Hose Made, Nozzle Diameter 5mm Maximum Pressure: 0.5Kpa
Test Medium: Tap Water Driving Power: AC Gear Motor
Speed Adjustment: Frequency Converter Adjustment Key Words: Braking Performance
High Light:

GB17161 Electric Bike Tester

,

0.5Kpa Electric Bike Tester

,

GB17161 Ebike Testing Device

GB17161 Computer Control Electronic bicycle Braking Performance Equipment





Summary:



This testing machine uses for the electric bicycle whole vehicle comprehensive performance test,it can perform braking test, extreme speed test, riding distance test, electrical test (excluding power test) under dry and wet conditions.It adopt computer control,the test results can be printed with a micro printer,The load is applied electrically, which is convenient and more realistically to simulate the test environment and state.



Standard:



According to GB17161,GB3565,GB24155 and so on standard request make ,It used for electric bike speed limit and pedal riding ability detection.According to GB17761-2018,GB3565-2005 and so on standard related request,Carry out safety performance of electric bike and other products,Electric vehicle energy consumption and other performance testing.Verify that data can be stored and transmitted.



Parameter: .



Overall structure



The steel structure of the whole machine, the control system and the operating part are separated, and the speed test of the whole vehicle, the brake system test and the electrical performance test and so on can be carried out.
Control way Computer control, configure printer to print
Fixation Way The wheels of the whole vehicle are fixed by front and rear roller sets, the handlebars are fixed by mechanical arms, and the saddles are fixed by the loading system;
Wheel adjustment The rear roller is electrically adjusted, the maximum distance is 300mm
Roller material simulated cement pavement ( it can customize asphalt pavement by customers request)
Braking Way Pneumatic, front and rear brakes can act independently or simultaneously
Fixed adjustment One end of the cross bar slides, and the handle saddle loading guide bar slides and adjusts
Water spray device One set for front and rear, connected with T-shaped joints, snap-fitted, maximum opening 80mm
Nozzle configuration Four sets of spray devices, two sets of 45 degrees and 25 degrees each, equipped with fixed connection fixtures and angle stoppers
Nozzle specifications Stainless steel hose made, nozzle diameter 5mm
Pressure system Water pump and booster pump adjustment
Maximum pressure 0.5Kpa
Filter system Clean the filter, the filter element can be removed and washed
Operating way Spraying speed, pressure, spraying volume, times, interval time can be set
Test medium tap water
Test station 1 station
Driving power AC gear motor
Speed adjustment frequency converter adjustment
Brake drive pneumatic
Braking force realization The hand handles are connected to S-type force value sensors
Braking force value maximum 200N, can be set according to standard requirements.
Saddle loading weights, maximum 80Kg
Control software Independently developed Chinese software, which can set the test speed, time, number of times, and the size of the applied force, feedback the different changes of the braking force under different speed conditions through the curve, the software has the functions of picture interception, editing and printing reports.
