ASTM-D 2099 Maeser Zigzag Method Leather Dynamic Waterproof Testing Machine

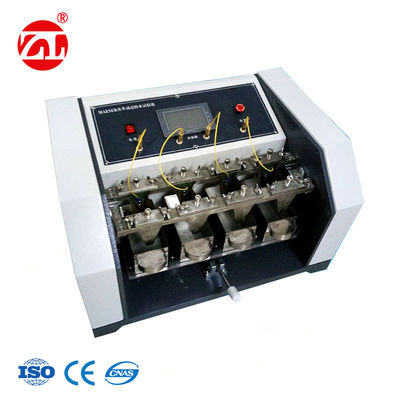

Large Image : ASTM-D 2099 Maeser Zigzag Method Leather Dynamic Waterproof Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7062

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM-D 2099 Maeser Zigzag Method Leather Dynamic Waterproof Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 Sets

Contact Now

Detailed Product Description

Product Name:	ASTM-D 2099 Maeser Zigzag Method Leather Dynamic Waterproof Testing Machine	Zigzag Angle:	(30 ± 1) O.
Volume:	70cm62cm55mm.	Weight:	60kg
Number Of Test Pieces:	4 Samples Were Tested At The Same Time	Test Speed:	(90 ± 5) Rev / Min.
Power:	AC220V, 10A.	Key Words:	Maeser Zigzag Method
Highlight:	ASTM-D 2099 Waterproof Testing Machine , SATRA TM34 Waterproof Testing Machine , ALCA E56 Leather Testing Machine

ASTM-D 2099 Maeser Zigzag Method Leather Dynamic Waterproof Testing Machine

Product Overview

The ASTM-D 2099 Maeser Zigzag Method Leather Dynamic Waterproof Testing Machine evaluates the dynamic water resistance of materials by simulating real-world wearing conditions through zigzag motion.

Testing Principle

Test specimens are mounted on the machine with the surface facing outward and partially immersed in water. The machine simulates walking motion through zigzag movement, allowing evaluation of dynamic water resistance based on the number of test cycles or time required for water penetration.

Standard Accessories

One mold die
Diameter 3mm stainless steel ball (4kg)
Manual, warranty card, and quality inspection report (1 copy each)
Power cord

Technical Specifications

Parameter	Specification
Test Speed	(90 ± 5) rev/min
Zigzag Angle	(30 ± 1)°
Number of Test Pieces	4 samples tested simultaneously
Fixture Spacing	(60 ± 1) mm
Dimensions	70cm × 62cm × 55mm
Weight	60kg
Power Requirements	AC220V, 10A

Compliance Standards

Meets SATRA TM34, ASTM-D 2099, ALCA E56 and other international standards for leather waterproof testing.
