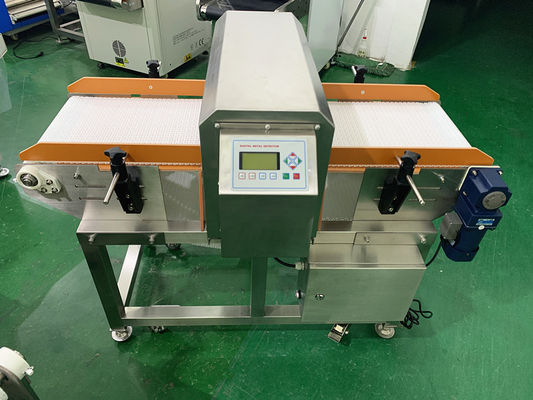

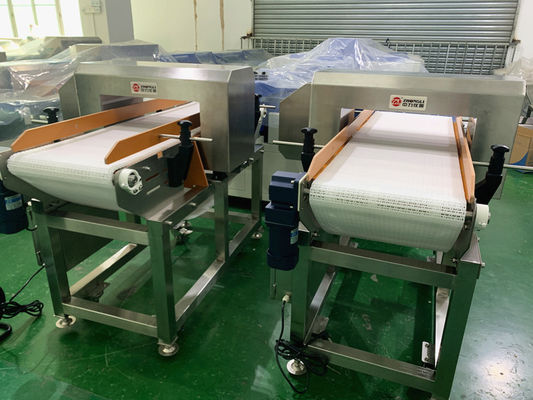

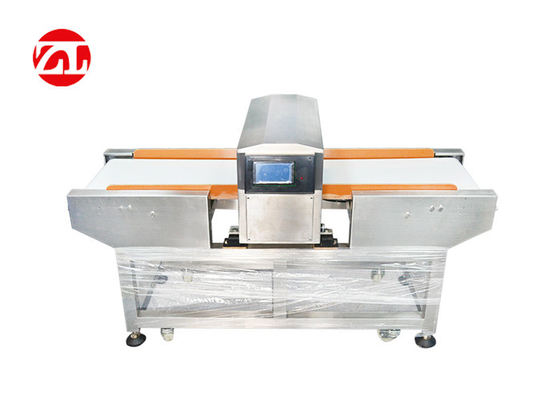

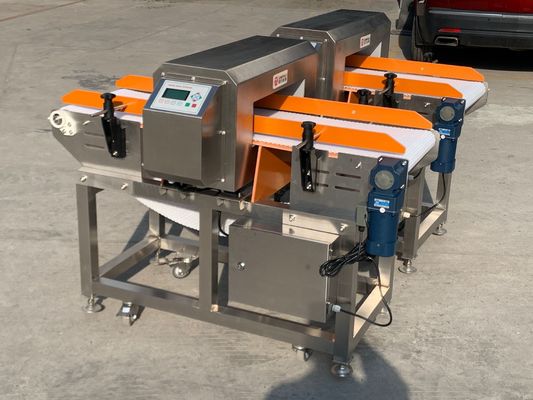

|Product Name:||Plate Chain Conveyor Belt Needle Detector For Meat , Sea Food And Vegetables||Display:||Large LCD Display|
|Detection Height:||8-50cm Customized||Detection Width:||30-80 Cm Customized|
|Transfer Speed:||25 Meter / Min Or You Can Select Adjust Speed||Alarm Mode:||The Buzzer Alarm, The Motor Automatically Stop|
|Power:||100-265VAC, 50-60Hz (According To Customer Request)||Key Words:||Needle Detector|
25M/Min Needle Detector Machine,
20KG Needle Detector Machine,
25m/min needle metal detector
If is widely used in the detection of Meat, Frozen meat, Sea food, Mushrooms, Drinks ,Fruits , Sugar, Salt and Vegetables
ZL-4001 is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. It can store more than 100 kinds of testing data of products.
5. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
6. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
7. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
8.Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65
9. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
|Detection height||8-50cm Customized|
|Detection width||30-80 cm, Customized|
|Transfer speed||25 meter / min or you can select adjust speed|
|Detection sensitivity||See below table|
|Alarm mode||The buzzer alarm, the motor automatically stop|
|Power||100-265VAC, 50-60Hz (According to customer request)|
The reality detector sensitivity depends on the products and operating environment . Please kindly see below:
|Fe 0.8||Fe 1.0||Fe 1.2||Fe 1.5||Fe 2.0||Fe 2.5||Fe 3.0|
|SUS 1.0||SUS 2.0||SUS 2.5||SUS 2.5||SUS 3.0||SUS 3.5||SUS 4.0|
|N-Fe 1.0||N-Fe 1.5||N-Fe 2.0||N-Fe 2.0||N-Fe 2.5||N-Fe 3.0||N-Fe 3.5|
|Speed of belt||
25M/min (Fixed speed) ;
If you need adjust 5-40 M/min , please inform us before order
|Warning method||Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)|
|Reject Ways||when has auto-reject system ,belt continue and rejecting the goods|
|Application||Non-package ,plastic package ,paper bag or box (non-metallic) product|
|Work Environment||Temperature -10℃-40℃ ,relative humility 30-90%|
