| Product Name: | TAPPI-T476 2 Stations Leather TABER Wear - Resistant Tester For Plywood , Glass | Test Load: | 250g, 500, 1000g |
|---|---|---|---|
| Test Speed: | 60 R.P.M | Grinding Wheel Model: | H18,H22,CS10,CS17,S32,S33 |
| Abrasion Wheel And Specimens Distance: | 37, 38 Mm | Times Setting: | 0 ~ 999999 Times Setting Automatically Shut Down |
| Auxiliary Accessories: | Specimen Cutters, Grinding Wheels, Pre-sanding Paper, Vacuum Cleaner. | Power: | AC 110V/60Hz Or 220V/50HZ 2A |
| Abrasion Wheel Center Distance: | 63.5mm | Key Words: | Two Stations |
| High Light: | Leather Taber Abrasion Tester,2 Station Taber Abrasion Tester,TAPPI-T476 Leather Testing Machine |
||

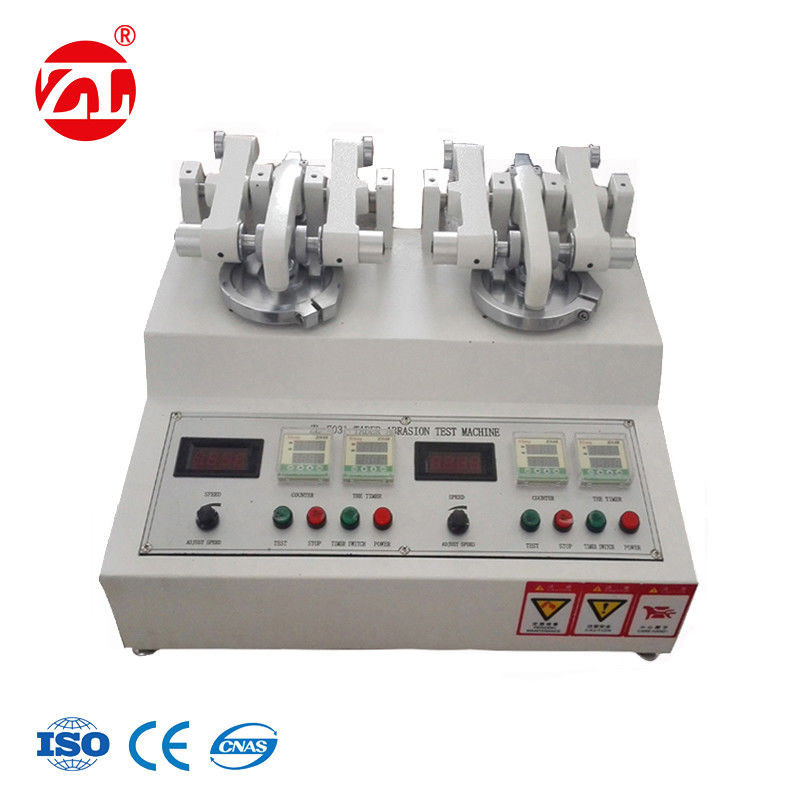

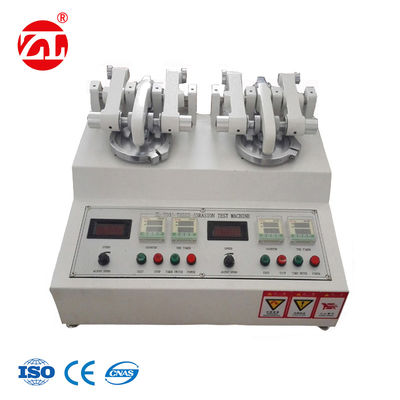

TAPPI-T476 2 Stations Leather TABER Wear - resistant Tester for Plywood , Glass
Corresponding standard :
TAPPI-T476, ISO-5470, DIN-53754,53799,53109,52347,ASTM-D1044,D3884,
Tester summary:
ZL-7031B 2 Stations Leather TABER Abrasion Tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to reach a certain number, observe the condition of the specimen or compare the weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Applicable industry:
It used in testing the performance of leather products, such as paints, carpets,suitcases, clothing, cardboard, plastic coating, glass, ceramic tile, metal plating, high-pressure sheets, varnishes, decorative sheets, plastics, textiles, flexible floor mats, traffic paint, blankets, electronic components, anodizing layer, leather, decorative plates, wax, label, car ornaments, dental materials, resin, furniture, and scientific research laboratories; commodity inspection, arbitration, and technical supervision department.
Machine Specifications:
| Grinding wheel model | H18,H22,CS10,CS17,S32,S33 |
| Abrasion wheel Center distance | 63.5mm |
| Abrasion wheel and specimens distance | 37, 38 mm |
| Test Speed | 60 R.P.M |
| Test Load | 250g, 500, 1000g |
| Times setting | 0 ~ 999999 times setting automatically shut down |
| Auxiliary accessories | specimen cutters, grinding wheels, pre-sanding paper, vacuum cleaner. |
| Weight | 40 kg |
| Power | AC 110V/60Hz or 220V/50HZ 2A |
Computational formula:
Abrasion index computational formula=Abrasion loss weight ×100
Test turnover number
Testing reference:
| Paint | Brick | Plywood | Plastic |
|
CS10 CS17 |
CS17 |
S32 S33 |
CS17 H18H22 |
