|Product Name:||10KN High-temperature Computer Servo Testing Machine With High Accuracy||Effective Testing Width:||390mm|
|Effective Tensile Stroke:||800mm;1000mm;1200mm||Accuracy Of Displacement Measurement:||Tolerance: ±0.5％/ Tolerance: ±0.2％|
|Safety:||Electronic-limit Protection||Testing Platform Moving Device:||Fast /slow Two Speeds To Control，can Jog|
|Overload Protection:||Overload 10％，automatic Protection||Fixture:||A Set Of Tensile Fixture|
|Temperature Range:||Normal Temperature~150C||Key Words:||High Temperature|
Computer Servo Universal Testing Machine,
10KN Universal Testing Machine,
220v 50hz universal test equipment

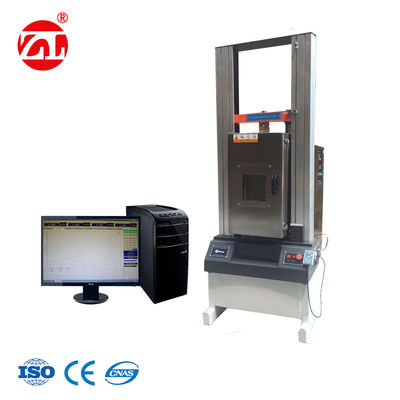

10KN High-temperature Computer Servo Testing Machine With High Accuracy
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Corresponding standard :
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.

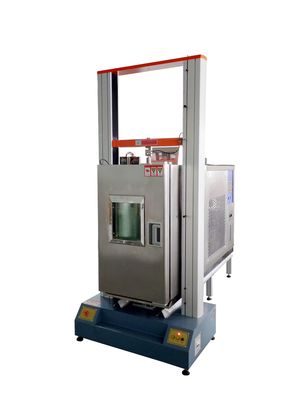

The instrument consists of pulling machine main body, fixtures and movable high and low temperature and other components.
Rally host portion fully equipped with imported digital AC servo system, high rigidity frame structure.
High and low temperature with double insulated glass door, convenient user to observe the test case, and all-stainless steel frame and liner, not only beautiful, but also corrosion resistance.
ZL-8001C Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1ton.
|Max load||5KN1ton, 2 ton|
|Accurate grade||1 % /0.5 %|
|Effective measuring range||0.2％～100％(1grade)/0.4％～100％(0.5 grade)|
|Measuring accuracy||Display the value ±1％/Display the value±0.5％|
|Tester resolution||Max load 1/200000,regardless of inside and outside,constant the resolution|
Basic configuration:sensor(max load): one
Extended configuration:can add more sensors
|Effective testing width||390mm(can be widened according to customer’s requirement )|
|Effective Tensile stroke||800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement)|
|Range of testing speed||0.001～200mm/min ; 500mm/min (1000mm/min is option)|
|Accuracy of displacement measurement||Tolerance: ±0.5％/ tolerance: ±0.2％|
|Deformation of measured system(according to the requirements)||
Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm
|Accuracy of measured deformation||Tolerance :±0.5％ (according to requirement of customer to choose the larger or small deformation)|
|Testing platform moving device||Fast /slow two speeds to control,can jog|
|Return back||Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation|
|Overload protection||Overload 10％,automatic protection|
|Fixture||A set of tensile fixture|
|Power system||Panasonic AC Servo Motor + Driver + high-precision ball screw|
|Power||0．4KW(depending on different demand of force, using different motor)|
|Machine weight||(about)250 Kg|
|Units||Kg ,N, LB, TON, can be exchanged.|
|Temperature Control System Technical Parameters|
|Temperature range:||Normal temperature~150C|
|Cooling system:||Compression from France|
|Insulation:||High-density rigid PU foams and glass wool 24K|
|Timer||LED, 0 ~ 9999 99 points|
|Within the box material:||SUS # 304, stainless steel mirror|
|Emergency stop devices||it can handle unexpected situations|
|Overheat prevention device:||the protection of the sample and test box|
|High Speed Circuit protection:||protection of the heating circuit|
|Motor||thermal overload relay|
|Breaker protection:||protect the compressor and prolong life|
|Overload protection switch||ultra-high temperature overload protection switch, water protection devices|
1.The software description about Computer servo testing machine
A. Function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.
B. Tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.
C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)
D. The data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.
F. Test results can be output in EXCEL format.
G. Testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.
H. Software has a capability that can output the before data.
2.The accessories about Computer servo testing machine
A. Warranted book within one-year and operating instructions.
B. A group of fixture
C. Testing software for tensile machine.
D. A set of brand computer, color printer
3. Items can be tested in the Computer servo testing machine
Common items: ( display data and calculation )
● Tensile stress ● tensile strength
● Tensile strength ● rate of elongation at break
● Fixed stress ● rate of stress at break
● Stress strength ● tear strength
● The value of force at any point ●rate of elongation at any point
● Pull-out strength ● force of adhesion and the peak of force
