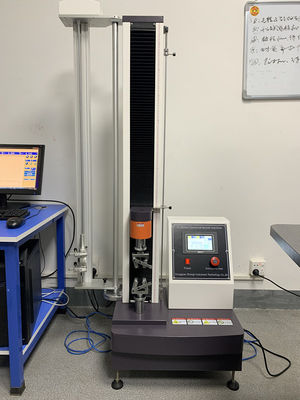

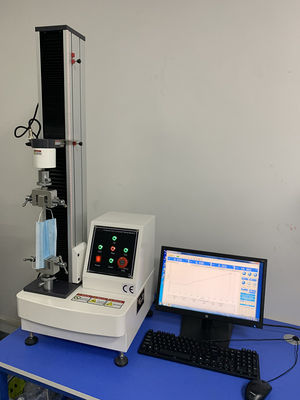

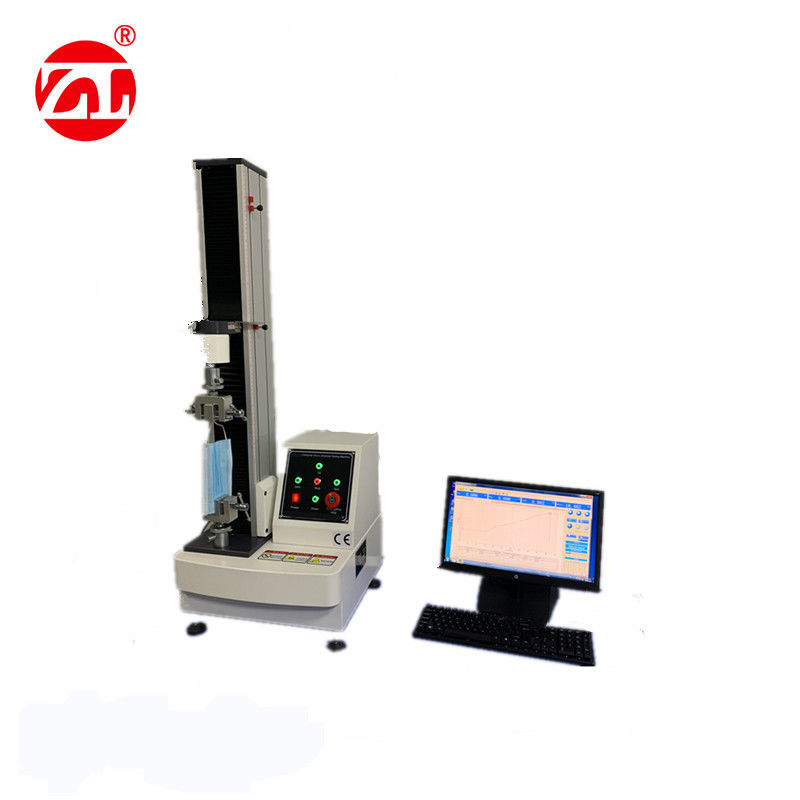

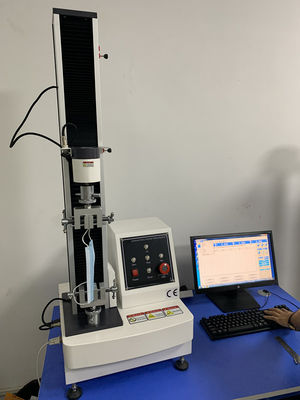

Electronic Limit Protection Desktop Computer Servo Universal Testing Machine

Electronic Limit Protection Desktop Computer Servo Universal Testing Machine
Electronic Limit Protection Desktop Computer Servo Universal Testing Machine
video play

Large Image :  Electronic Limit Protection Desktop Computer Servo Universal Testing Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-8004C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Electronic - limit Protection Desktop Computer Servo Testing Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Electronic - Limit Protection Desktop Computer Servo Testing Machine Range Of Testing Speed: 0.001~500mm/min
Accurate Grade: 1grade/0.5 Grade Safety: Electronic-limit Protection
Overload Protection: Overload 10%,automatic Protection Motor: Panasonic AC Servo Motor And Drive
Power Supply: 220V、50HZ Key Words: Desktop Computer Servo
High Light:

Desktop Computer Servo Universal Testing Machine

,

500mm/min Universal Testing Machine

,

electronic limit protection utm testing machine

Electronic - limit Protection Desktop Computer Servo Testing Machine





Equipment summary:



ZL-8004C desktop computer servo testing machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test non-metallic and metallic material which the load is less than 1kN, it has the parameters, such as stress, strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.



Main function:



This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.



Main features:



1. Adopt Panasonic servo motor, the beam moves up and down to test the load through the transmission.

2. The whole control system is safe and high reliability.

3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation, testing speed and testing curves.

4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curve can be transferred out after the test, you can know the testing process through the testing curve, or compare with others curves, or amplify the curve.

5. the testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.

6. Has limit protection, overload protection, emergency stop and other safe protective functions.



Applicable industry:



It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested



Technical parameters:



Model ZL-8004C
Maximum load 200N,500N,1KN, option,
Accurate grade 1grade/0.5 grade
Effective measuring range 0.2%~100%/0.4%~100%
Measuring accuracy the value ±1%/ the value ±0.5%
Tester resolution Max load 1/200000,constant the resolution
Load sensor

Basic configuration:sensor(max load): one

Extended configuration:can add more sensors

Effective tensile stroke 500mm(can be increased the height according to customer’s requirement)
Range of testing speed 0.001~500mm/min
Accuracy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
Safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control,can jog
Return back Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
Fixture A set of tensile fixture
Machine size 45x58x135cm (length*width*height)
Motor Panasonic AC servo motor and drive
Power supply 220V,50HZ
power 0.4KW(depending on different demand of force, using different motor)
Weight (about)75 KG
Unit KG, N, LB, TON, can be exchanged.


Software features:



The software description about desktop computer servo testing machine

A. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.

B. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.

C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)

D. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.

E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.

F. Test results can be output in EXCEL format.
G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.

H. Software has a capability that can output the before data.



The accessories about desktop computer servo testing machine



A. warranted book within one-year and operating instructions.

B. a group of fixture

C. testing software for tensile machine.

D. a set of brand computer, color printer



Items can be tested in the desktop computer servo testing machine



Common items: ( display data and calculation )

● Tensile stress ● tensile strength

● Tensile strength ● rate of elongation at break (need to add the devices )

● Fixed stress ● rate of stress at break

● Stress strength ● tear strength

● The value of force at any point ●rate of elongation at any point

● Pull-out strength ● force of adhesion
