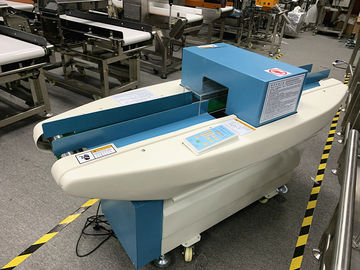

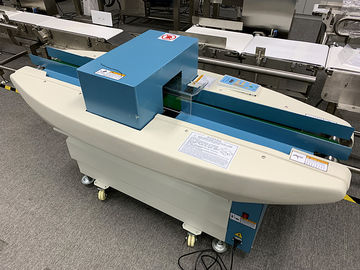

CNC Printed Customized Needle Detector For Testing FE In Small Products

Large Image : CNC Printed Customized Needle Detector For Testing FE In Small Products

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	CNC Printed Customized Needle Detector for Testing FE Used in Small Products is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	CNC Printed Customized Needle Detector For Testing FE Used In Small Products	Detection Width:	200mm
Detection Height:	100mm	Detector Sensitivity(mm):	Fe1.0
Speed Of Belt:	25M/min (Fixed Speed)	Controller:	Microcomputer Numerical Control
Highlight:	CNC Printed Needle Detector , Fe1.0 Metal Detector Machine

CNC Printed Customized Needle Detector For Testing FE In Small Products

Product Overview

The ZL-4001A is a newly arrived food metal detector featuring touch screen operation, 10-level adjustable sensitivity, and memory for 10 product types. This detector offers enhanced reliability and stability when checking products containing water and salt.

Key Features

Advanced balance theory for reliable detection
Phase-adapted technology effectively eliminates product effect
Combination of DSP and Microprocessor enhances detection efficiency
Large LCD display with Chinese & English language options
Self-learning function automatically stores product features
Stores over 100 product testing data profiles
Customizable automatic rejection system
Suitable for wet, dry, dust, and dew environments
Stainless steel construction with HACCP attestation and IP65 waterproof rating

Applications

Widely used for detecting metal contaminants in sugar, meat, frozen meat, seafood, mushrooms, drinks, fruits, salt, and vegetables.

Technical Specifications

Detection Width	30-80 cm (Customized)
Detection Height	8-50 cm (Customized)
Alarm Mode	Buzzer alarm, motor automatically stops
Transfer Speed	25 meter/min or adjustable speed
Power	100-265VAC, 50-60Hz (Customizable)
Size	(150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H)
Reject System	Optional

Detection Sensitivity Specifications

Detected Height (mm)	80	100	150	200	250	300	350
Belt Width (mm)	250	250	400	400	400	400	400
Fe Sensitivity (mm)	0.8	1.0	1.2	1.5	2.0	2.5	3.0
SUS Sensitivity (mm)	1.0	2.0	2.5	2.5	3.0	3.5	4.0
N-Fe Sensitivity (mm)	1.0	1.5	2.0	2.0	2.5	3.0	3.5

Additional Specifications

Belt Speed	25M/min (Fixed speed) or adjustable 5-40 M/min
Load Capacity	20KG
Count	100
Warning Method	Sound and light alarm with belt control options
Reject Method	Belt continues while rejecting contaminated goods
Application	Non-package, plastic package, paper bag or box (non-metallic) products
Work Environment	Temperature -10℃ to 40℃, relative humidity 30-90%
