90° Flexing Angle Sole Flexing Tester with 125-150 Cycles/Min Speed and EN 344 ISO 17707 Compliance

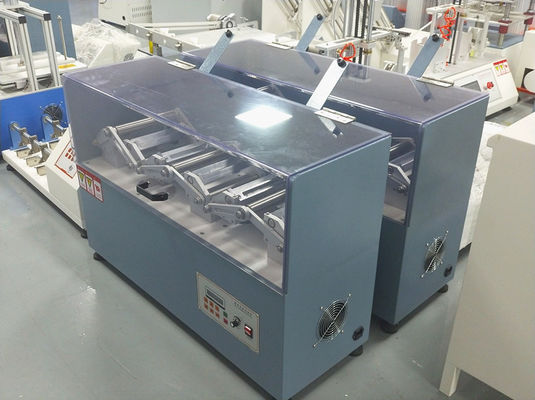

Large Image : 90° Flexing Angle Sole Flexing Tester with 125-150 Cycles/Min Speed and EN 344 ISO 17707 Compliance

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7041

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	90° Flexing Angle EN Sole Flexing Testing Machine With 3pcs Sampling is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	90° Flexing Angle EN Sole Flexing Testing Machine With 3pcs Sampling	Flexing Speed:	125-150CYCLES/MIN
Width Of The Grips:	144MM	Counter:	LCD 0-999999
Dimension(WDH):	1005330CM	Power:	AC220V,3A
Comply To Standard:	EN 344 ; ISO 17707	Weight:	98kg
Highlight:	shoes test machine , leather measuring machine

90° Flexing Angle EN Sole Flexing Testing Machine With 3pcs Sampling

Product Overview

This testing machine determines the resistance of materials to cut growth during repeated flexing. It is specifically designed for testing outsoles of footwear, including various sole constructions. The machine uses a cutting tool to pierce specimens between cleats at three points along the line of maximum bending stress, then performs 90° bending actions at specified speeds to inspect cut growth with precision measurement.

Technical Specifications

Parameter	Specification
Sampling Capacity	3 pieces
Flexing Angle	90°
Flexing Speed	125-150 cycles/minute
Width of Grips	144 mm
Counter	LCD display, 0-999999 cycles
Dimensions (W×D×H)	100 × 53 × 30 cm
Weight	98 kg
Power Requirements	AC220V, 3A

Compliance Standards

This machine complies with international testing standards: EN 344 and ISO 17707

Product Images

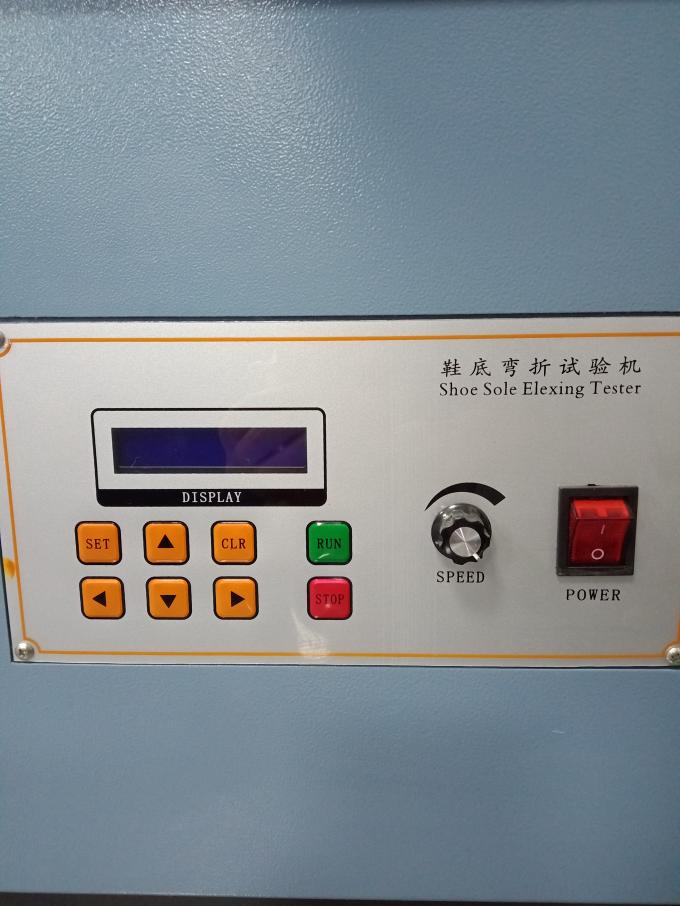

90° Flexing Angle EN Sole Flexing Testing Machine front view

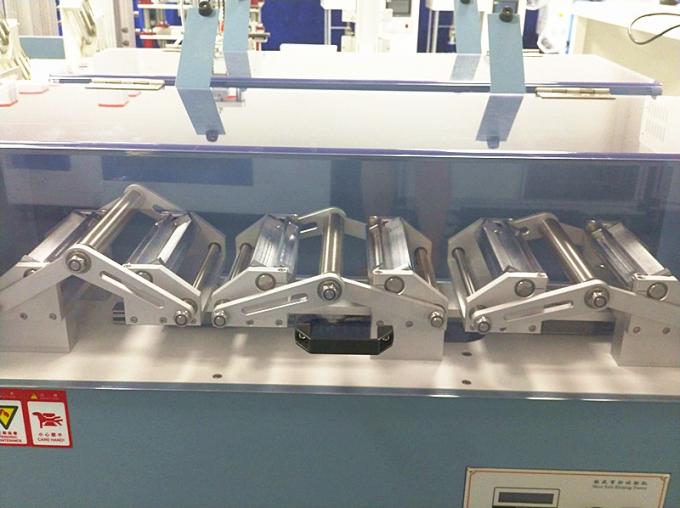

90° Flexing Angle EN Sole Flexing Testing Machine side view
