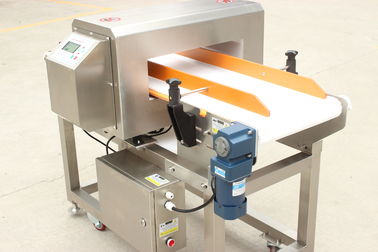

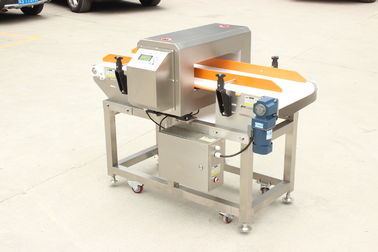

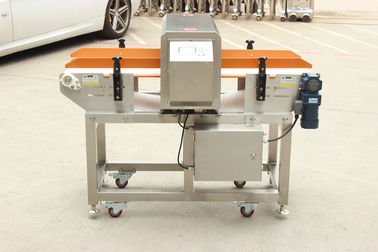

Customized Big LCD Modular Plastic Chain Belt Metal Detector With Balance Theory

Large Image : Customized Big LCD Modular Plastic Chain Belt Metal Detector With Balance Theory

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Customized Big LCD Modular Plastic Chain Belt Metal Detector With Balance Theory is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Customized Big LCD Modular Plastic Chain Belt Metal Detector With Balance Theory	Detected Height:	150mm
Belt Width:	400mm	Detector Sensitivity(mm):	Fe 1.2 , SUS 2.5 , N-Fe 2.0
Speed Of Belt:	25M/min (Fixed Speed) ;	Load Ability:	20KG
Count:	100	Reject System:	Option
Highlight:	conveyor metal detector , metal detector checkweigher

Customized Big LCD Modular Plastic Chain Belt Metal Detector With Balance Theory

The ZL-4001A is a newly arrived food metal detector featuring advanced touch screen controls, 10-level adjustable sensitivity, and memory for 10 product types. This industrial-grade detector offers exceptional reliability and stability when checking products containing water and salt.

Key Features

Advanced balance theory technology for enhanced reliability
Stores over 100 product testing data profiles
Phase-adapted technology effectively eliminates product effect
Combination of DSP and Microprocessor for superior detection efficiency
Large LCD display with Chinese & English language options
Self-learning function automatically learns and stores product features
Advanced error prevention in transmission and reception
Customizable automatic rejection system to improve production efficiency
Suitable for wet, dry, dust, and dew environments
Stainless steel construction with HACCP certification and IP65 waterproof rating

Technical Specifications

Detection Width	30-80 cm, Customized
Detection Height	8-50 cm, Customized
Alarm Mode	Buzzer alarm, motor automatically stops
Transfer Speed	25 meters/min or adjustable speed
Power	100-265VAC, 50-60Hz (According to customer request)
Size	(150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H)
Reject System	Optional

Applications

Widely used for detection of meat, frozen meat, seafood, mushrooms, drinks, fruits, sugar, salt, and vegetables. Suitable for non-packaged, plastic packaged, paper bag, or box (non-metallic) products.

Detection Sensitivity Specifications

Note: Actual detector sensitivity depends on products and operating environment.

Detected Height (mm)	80	100	150	200	250	300	350
Belt Width (mm)	250	250	400	400	400	400	400
Belt Length	1500 mm
Fe Sensitivity (mm)	0.8	1.0	1.2	1.5	2.0	2.5	3.0
SUS Sensitivity (mm)	1.0	2.0	2.5	2.5	3.0	3.5	4.0
N-Fe Sensitivity (mm)	1.0	1.5	2.0	2.0	2.5	3.0	3.5
Speed of Belt	25M/min (Fixed speed); Adjustable 5-40 M/min available upon request
Load Ability	20KG
Count	100
Warning Method	Sound and light alarm; Belt stop, continue run, or return options available in PLC controller
Reject Ways	Automatic rejection system with continuous belt operation
Work Environment	Temperature -10℃ to 40℃, relative humidity 30-90%
