BS EN ISO 22254 Brush Bending Strength Tester To Manual Adult Hair - Transplant Toothbrush

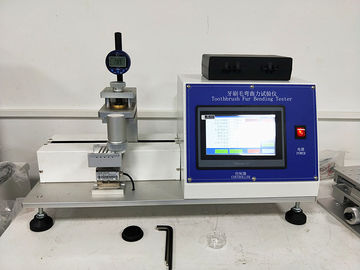

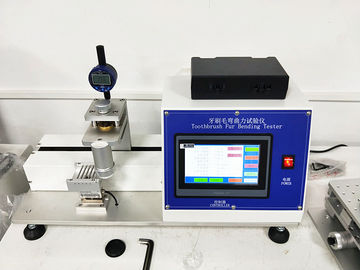

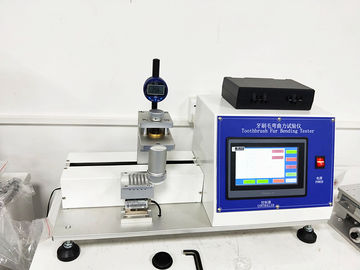

Large Image : BS EN ISO 22254 Brush Bending Strength Tester To Manual Adult Hair - Transplant Toothbrush

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2818

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	BS EN ISO 22254 Brush Bending Strength Tester to Manual Adult Hair-transplant Toothbrush is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	BS EN ISO 22254 Brush Bending Strength Tester To Manual Adult Hair-transplant Toothbrush	Operating Speed:	Can Be Set Between 10 - 50 Mm/s
Configure The Sensor Range:	50 N	Accuracy:	0.05 N
Stainless Steel Rod:	3.2 ± 0.1 Mm In Diameter, A Total Of 5	Standard:	GB19342-2013 Appendix B, GB30002-2013, BS EN ISO 22254, Etc.
Center Spacing:	8.2 ±0.1 Mm	Maximum Surface Roughness:	R = 0.4 μm
Highlight:	phone testing equipment , mobile phone testing machine

BS EN ISO 22254 Brush Bending Strength Tester To Manual Adult Hair - Transplant Toothbrush

Product Overview

This machine evaluates the strength of the bristle tuft using the force generated by the bristle against bending to classify the tuft strength of the toothbrush. This test is applicable to manual adult hair-transplant toothbrushes and is not applicable to special-type, functional toothbrushes and electric toothbrushes.

Key Features

Measures bristle height first, then measures the force generated by bending resistance
Classifies bristle bundle strength according to intensity levels
Comprehensive testing capabilities for manual adult hair-transplant toothbrushes

Technical Specifications

Parameter	Specification
Operating Speed	10 - 50 mm/s (adjustable)
Sensor Range	50 N
Accuracy	0.05 N
Stainless Steel Rod	3.2 ± 0.1 mm diameter (5 rods total)
Center Spacing	8.2 ± 0.1 mm
Maximum Surface Roughness	R = 0.4 μm
Dial Indicator Range	0.01 - 25.4 mm (meets national standard requirements)
Weight	25 kg
Overall Dimensions	650 × 250 × 450 mm (L × W × H)
Power Supply	AC 220V, 50Hz, 200 W

Compliance Standards

GB19342-2013 Appendix B
GB30002-2013
BS EN ISO 22254

Please specify test criteria before ordering the machine.
