IEC62133 Compliant Battery Drop Test Machine with Adjustable Drop Height and Pneumatic Fixture for Mobile Phone Testing

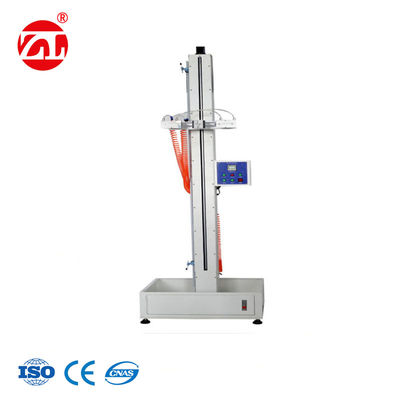

Large Image : IEC62133 Compliant Battery Drop Test Machine with Adjustable Drop Height and Pneumatic Fixture for Mobile Phone Testing

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3201

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Battery Drop Test Machine , Pneumatic Free Fall Tester For Mobile Phone is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Battery Drop Test Machine	Max. Weight Of The Specimen:	2kg ± 100g
Drop Height:	400 ~ 1500mm (adjustable)	Drop Height Gauge:	Accuracy 1mm
Holding Way:	Pneumatic Fixture	Drop Floor Media:	Acrylic Board, Stainless Steel (customer-owned)
Fall Mode:	Free Fall	Floor Size:	560x410mm
The Use Of Pressure:	0.4 MPa	Machine Size:	700x900x1650mm
Highlight:	phone testing equipment , mobile phone testing machine

IEC62133 Battery Drop Test Machine, Pneumatic Free Fall Tester For Mobile Phone

Product Overview

This machine is designed for free falling tests of small consumer electronic products and components including mobile phones, walkie-talkies, electronic dictionaries, intercom systems, and CD/MD/MP3 players. The equipment features a pneumatic structure with specialized adjustable fixtures. When the drop button is pressed, the cylinder releases, allowing the specimen to undergo free fall testing. Drop height is adjustable from 400mm to 1500mm, with reliable key components and multiple drop floor options available.

Compliance Standards

GB/T 31485-2015
GB/T 31241-2014
UN38.3
IEC62133
QC/T743-201X
GB/T 8897.4-2008

Technical Parameters

Maximum Specimen Weight	2kg ± 100g
Drop Height Range	400 ~ 1500mm (adjustable)
Drop Height Gauge Accuracy	1mm
Holding Method	Pneumatic Fixture
Drop Floor Media	Acrylic Board, Stainless Steel (customer-owned)
Fall Mode	Free Fall
Floor Size	560x410mm
Operating Pressure	0.4 MPa
Machine Dimensions	700x900x1650mm
Weight	80kg
Power Supply	1∮, 220V, 3A

Tag:

Battery testing machine,

Drop impact tester,

Mobile phone test equipment
