Hydraulic Drive Battery Squeeze Acupuncture Test Machine with LCD Display and 1-20N Force Range

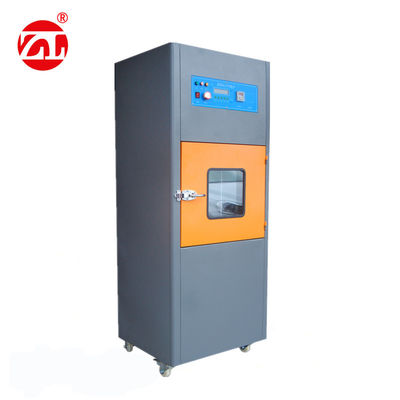

Large Image : Hydraulic Drive Battery Squeeze Acupuncture Test Machine with LCD Display and 1-20N Force Range

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3204

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	1-20N Hydraulic Drive Battery Squeeze Acupuncture Test Machine LCD Display	Measuring Accuracy:	± 1%
Squeeze Travel:	200mm Or 300mm	Battery Extrusion Head:	Standard Extrusion Head, Area ≥ 20cm²
Acupuncture Speed:	10 ~ 40mm / S (can Be Specified)	Box Material:	Stainless Steel Box, Box Cold-rolled Steel Spray
Acupuncture Force Value:	1 ~ 300Kg (optional)
Highlight:	mobile testing equipment , mobile phone testing machine

1-20N Hydraulic Drive Battery Squeeze Acupuncture Test Machine LCD Display

Product Overview

The Battery Squeeze Acupuncture Test Machine is designed to simulate various conditions that batteries may encounter during use, transportation, storage, or handling in household waste. This equipment tests battery resilience to compression and acupuncture under controlled environmental conditions.

Testing is conducted at 20℃ ± 5℃ ambient temperature. The battery, connected to a thermocouple (fixed on the large surface), is placed in a fume hood. A corrosion-resistant steel needle with diameter of 2-8mm penetrates the battery's maximum surface center at 10-40mm/s speed. The battery passes if it does not explode or ignite during the test period.

Meeting Standards

GB 31241-2014, GB/T 8897.4-2008, YD/T 2344.1-2011, GB/T 21966-2008, MT/T 1051-2007, YD 1268-2003, GB/T 19521.11-2005, YDB 032-2009, UL 1642, UL 2054, IEC 62281, IEC 60086

Equipment Technical Parameters

Extrusion Parameters

Parameter	Specification
Drive Mode	Hydraulic Drive
Force Value Range	1 ~ 20kN
Measuring Accuracy	0.1N
Unit Conversion	kg, N, lb
Squeeze Travel	200mm or 300mm
Force Value Display	LCD Display
Battery Extrusion Head	Standard extrusion head, area ≥ 20cm²
Degree of Extrusion	Squeeze pressure reached 13 ± 0.2kN, keep 1min
Box Material	Stainless steel box, box cold-rolled steel spray treatment
Features	Back of box designed with vents and pressure relief devices, box equipped with lights
Test Space	300x300x300mm (length x width x height)
Dimension	700x800x1830mm (length x width x height)
Weight	Approximately 220kg
Power Supply	AC380V, 50HZ

Acupuncture Parameters

Parameter	Specification
Needle	φ5mm ~ φ8mm high temperature steel needle, length of 100mm (can be specified)
Acupuncture Stroke	200mm or 300mm
Can Clip Battery Distance	200mm
Unit Conversion	Kg, N, LB
Acupuncture Speed	10 ~ 40mm/s (can be specified)
Acupuncture Force Value	1 ~ 300Kg (optional)
Force Value Display	LCD Display or Touch Screen Display
Measuring Accuracy	± 1%
Drive Mode	Cylinder Drive or Hydraulic Drive
Box Material	Stainless steel box, box cold-rolled steel spray
Features	Back of box design exhaust vents and pressure relief devices, box equipped with lights
