100 KN Power Battery Acupuncture Testing Machine Computer Control

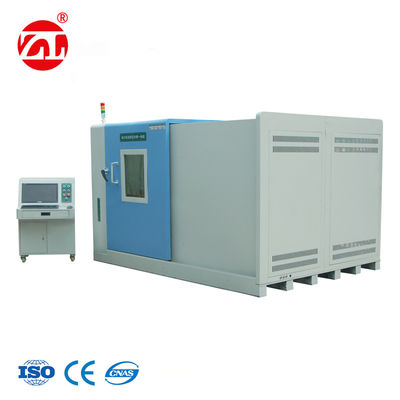

Large Image : 100 KN Power Battery Acupuncture Testing Machine Computer Control

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3211

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Computer Control 100 KN Power Battery Acupuncture Testing Machine	Acupuncture Force Value:	50 ~ 100KN (can Be Customized)
Measuring Accuracy:	± 1%	Test Speed:	10 ~ 40mm / S (can Be Set)
Control Mode:	Computer Control	Drive Mode:	Hydraulic Drive
The Box Material:	Stainless Steel Box, Box Cold-rolled Steel Spray Treatment	Power Supply:	3 ∮, 380V, 50HZ
Highlight:	phone testing equipment , mobile testing equipment

100 KN Power Battery Acupuncture Testing Machine Computer Control

Product Overview

This machine is designed to simulate various types of batteries during transport and storage acupuncture scenarios. The testing should be conducted at 20℃ ± 5℃ ambient temperature with a thermocouple connected to the battery surface, placed in a fume hood.

Using a diameter of 2-8mm non-corrosive steel needle at 10mm/s to 40mm/s piercing speed, the needle penetrates the battery's maximum surface area center. The test maintains any duration while observing results. Batteries that do not explode or catch fire are considered qualified.

Compliance Standards

GB 31241-2014
GB/T 8897.4-2008
YD/T 2344.1-2011
GB/T 21966-2008
MT/T 1051-2007
YD 1268-2003
GB/T 19521.11-2005
YDB 032-2009
UL 1642
UL 2054
IEC 62281
IEC 60086

Technical Specifications

Parameter	Specification
Acupuncture Force Value	50 ~ 100KN (customizable)
Measuring Accuracy	± 1%
Steel Needle	ф6 ~ ф10mm high temperature steel needle, length 100mm
Acupuncture Stroke	400mm (customizable according to battery size)
Test Speed	10 ~ 40mm/s (adjustable)
Unit Conversion	kgf, lbf, N, kN, KPa, MPa
Control Mode	Computer Control
Drive Mode	Hydraulic Drive
Test Product Size	500x500x500mm (customizable)
Box Material	Stainless steel box, cold-rolled steel spray treatment
Features	Ventilation design at back, equipped with interior lighting
Weight	Approximately 750KG
Power Supply	3∮, 380V, 50HZ
