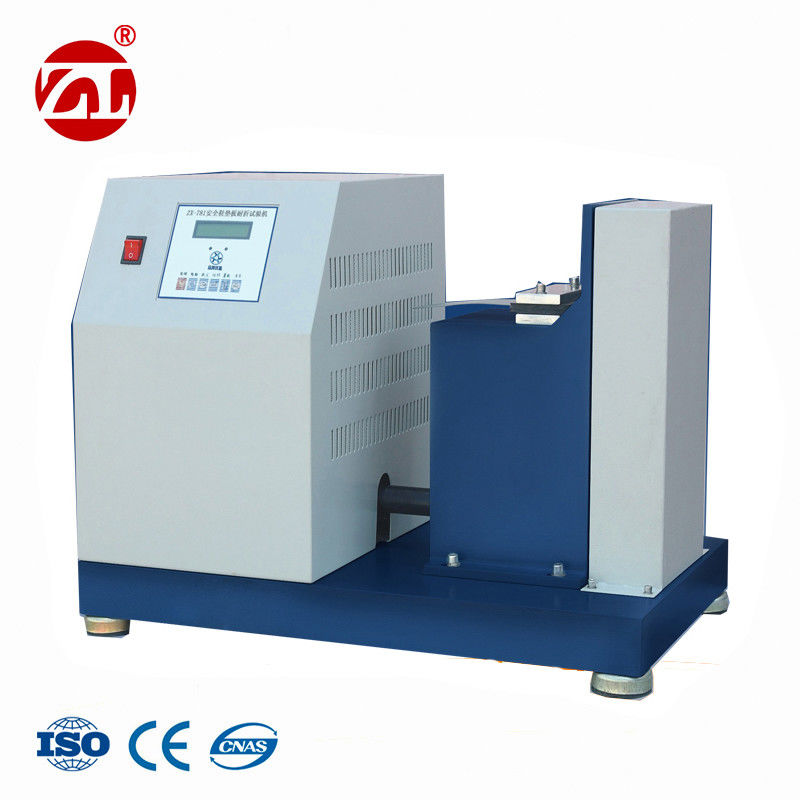

EN12568 ISO20344 Safety Shoes Plate Flexing Resistance Tester 2 Stations

EN12568 ISO20344 Safety Shoes Plate Flexing Resistance Tester 2 Stations
EN12568 ISO20344 Safety Shoes Plate Flexing Resistance Tester 2 Stations

Large Image :  EN12568 ISO20344 Safety Shoes Plate Flexing Resistance Tester 2 Stations

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-2205
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: EN12568 , ISO20344 Safety Shoes Plate Flexing Resistance Tester 2 Stations is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets
Contact Now
Detailed Product Description
Product Name: Safety Shoes Plate Flexing Resistance Tester Number Of Sample: 2 Sets
Bending Frequency: 16±1cycle/min Bending Vertical Height: 33mm
Bending Distence: 70mm Counter: LCD
Weight: 110kg Power: AC220V 0.75KW 50HZ
Highlight:

shoes test machine

,

leather measuring machine

EN12568 ISO20344 Safety Shoes Plate Flexing Resistance Tester 2 Stations
Product Overview

The EN12568, ISO20344 Safety Shoes Plate Flexing Resistance Tester is designed to evaluate the flexing resistance of safety shoe inserts. This 2-station testing equipment performs repeated flexing tests to ensure compliance with international safety standards.

Applications
  • Examines flexing resistance of safety shoe inserts
  • Secures center part of insert with clamping plates
  • Uses gripping bars to clamp specimen 70mm from clamping plate
  • Performs repeated flexing cycles to test durability
Compliance Standards
  • EN12568
  • ISO20344:2004
Technical Specifications
Parameter Specification
Place of Origin Guangdong China (mainland)
Number of Samples 2 sets
Bending Frequency 16±1 cycle/min
Bending Vertical Height 33mm
Bending Distance 70mm
Counter LCD
Dimension 120×45×50cm
Weight 110kg
Power AC220V 0.75KW 50HZ

Tag:

leather testing equipment,

footwear testing equipment,

shoes test machine
