| Product Name: | High Precision Digital Computer Servo Electro-hydraulic Bending Test Machine | Measuring Range Of Force: | 300 (KN) |
|---|---|---|---|
| Curb Roll Max Span: | 900mm | Paver Brick Roll Diameter: | Φ40mm |
| Curb Roll Diameter: | Φ30mm | Curb Roll Platen Diameter: | Φ50mm |
| Maximum Piston Stroke: | 0~150mm | Power Supply: | 380V±10%,50Hz |
| High Light: | tensile test machine,tensile strength testing machine |
||

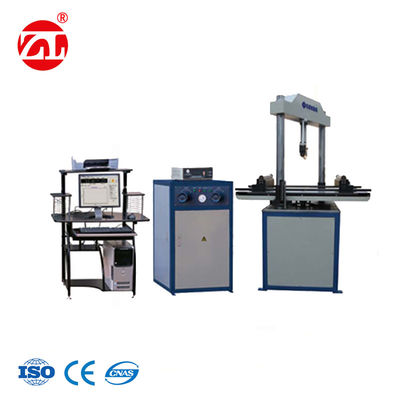

High Precision Digital Computer Servo Electro-hydraulic Bending Test Machine
Description
This machine is mainly designed for testing the compression strength and bending test of cement and mortar applies to JC899-2002 and JC/T446-2000. It can fulfill the test automatically according to the requirements, which lists in the inspection method for the strength of cement and mortar, also possess the below advantages, such as: realizing screen display of test data and test curves. It is ideal inspection equipment for factories, laboratory and education, etc.
Product features
1 Computer control up, down, test, stop and loading progress
2 Computer automatically control the loading progress
3 This machine consist of the host machine, oil source and control system.
4 High precision digital servo valve with closed-loop control function
5 Can realize the load rate, such as load or stress rate loading
6 Can auto printing
|
Parameter Type |
ZL-2117 |
|
| Measuring range of force (KN) | 300 | |
| Curb roll max span (mm) | 900 | |
| Paver brick roll diameter(mm) | Φ40 | |
| Curb roll diameter (mm) | Φ30 | |
| Curb roll platen diameter (mm) | Φ50 | |
| Maximum piston stroke (mm) | 0~150 | |
| Power supply | 380V±10%,50Hz | |
| Shape of machine | Large space, double column type | |
| Overall dimension (L×W×H) (mm) | Host machine | 1100×800×1650 |
