Digital Concrete Iron Positive And Reverse Bending Winding Test Machine

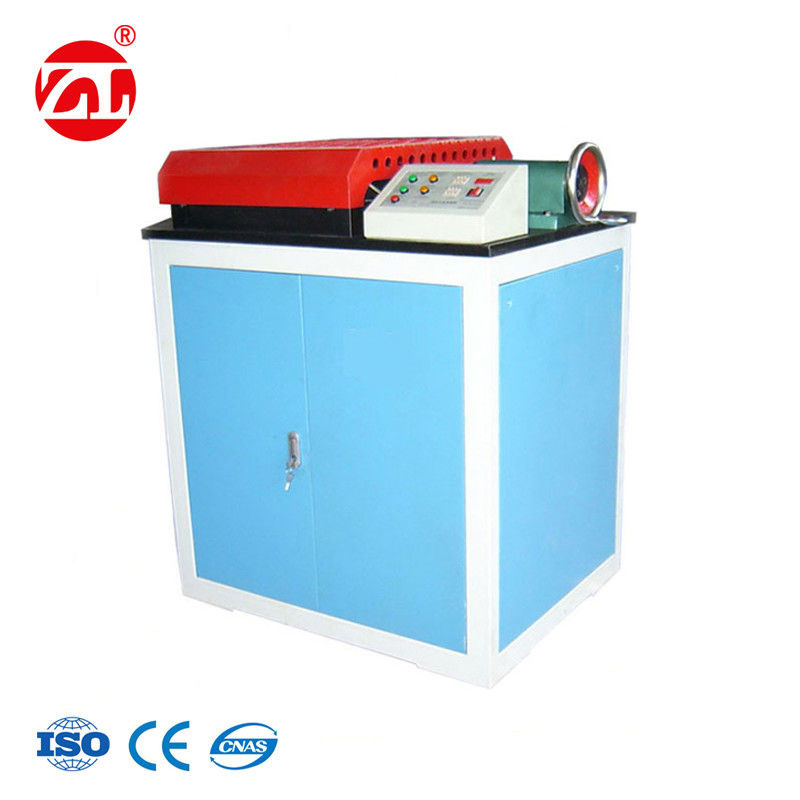

Large Image : Digital Concrete Iron Positive And Reverse Bending Winding Test Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2114

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Digital Concrete Iron Positive and Reverse Bending Winding Test Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Digital Concrete Iron Positive And Reverse Bending Winding Test Machine	Diameter Of Wire Rod:	φ6—φ40mm
Working Disc Speed:	≤ 3.7 (r/min)	Diameter Of Working Disc:	580 Mm
The Roller Heart Distance:	140mm	Reverse Bending Angle Range:	0—20°
Highlight:	tensile test machine , tensile strength testing machine

Digital Concrete Iron Positive And Reverse Bending Winding Test Machine

Product Overview

The Digital Concrete Iron Positive and Reverse Bending Winding Test Machine is designed for comprehensive bending tests on reinforcement bars and steel materials. This equipment meets critical industry standards and serves as essential testing apparatus for construction units and quality inspection stations.

Key Features

Performs both positive and reverse bending tests
Complies with GB/T1499.2-2007, GB1499-1998, GB5029-85, YB/T5126-93, and YB/T5126-2003 standards
Suitable for testing rebar and steel materials
Essential equipment for construction units and quality inspection stations
Dual-function capability for reinforced bending and construction applications

Technical Specifications

Parameter	Specification
Diameter of wire rod	φ6--φ40mm
Working disc speed	≤ 3.7 (r/min)
Diameter of working disc	580 mm
The roller heart distance	140mm
Reverse bending angle range	0--20°
Positive bending angle range	0--180°
Size (length × width × height)	1200mm × 1050mm × 750mm
Weight	900KG
Main motor power	1.5kw
