Payment & Shipping Terms:
|Product Name:||Sensitivity 10 Level Adjustable Metal Detector Used In Food Industry||Reject Ways:||When Has Auto-reject System ,belt Continue And Rejecting The Goods|
|Work Environment:||Temperature -10℃-40℃ ,relative Humility 30-90%||Alarm Mode:||The Buzzer Alarm, The Motor Automatically Stop|
|Transfer Speed:||25 Meter / Min Or You Can Select Adjust Speed||Application:||Non-package ,plastic Package ,paper Bag Or Box (non-metallic) Product|
conveyor metal detector,
metal detector checkweigher

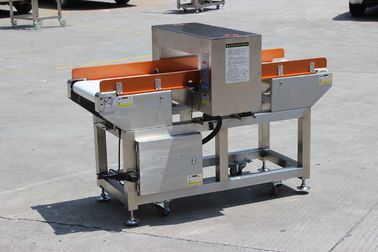

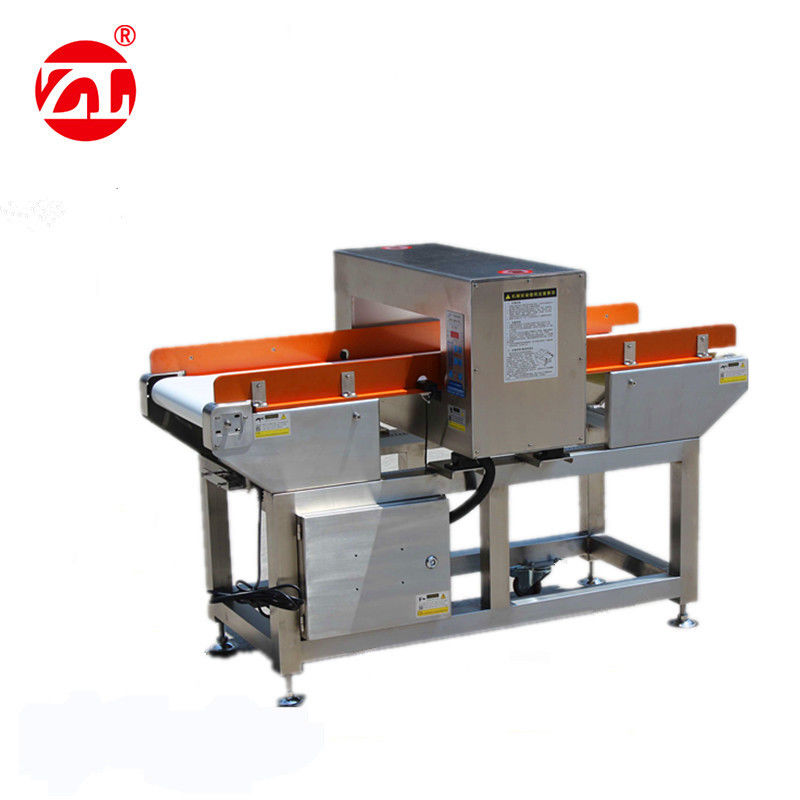

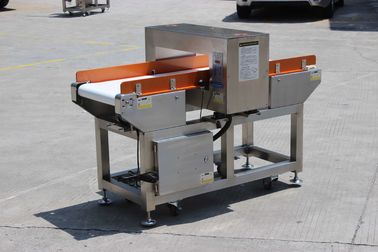

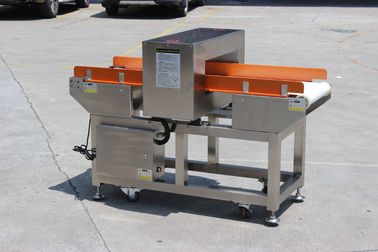

Sensitivity 10 Level Adjustable Metal Detector Used in Food Industry
It is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits , Sugar, Salt and vegetables
ZL-4001A is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and memory 10 kinds of products etc .
But also it has more higher reliability and stability on check products with water and salt.
1. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Adopt the theory of balance, more reliable;
4. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
5. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
6. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65
7. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
8. It can store more than 100 kinds of testing data of products.
9. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
The reality detector sensitivity depends on the products and operating environment . Please kindly see below:
|Fe 0.8||Fe 1.0||Fe 1.2||Fe 1.5||Fe 2.0||Fe 2.5||Fe 3.0|
|SUS 1.0||SUS 2.0||SUS 2.5||SUS 2.5||SUS 3.0||SUS 3.5||SUS 4.0|
|N-Fe 1.0||N-Fe 1.5||N-Fe 2.0||N-Fe 2.0||N-Fe 2.5||N-Fe 3.0||N-Fe 3.5|
|Speed of belt||
25M/min (Fixed speed) ;
If you need adjust 5-40 M/min , please inform us before order
|Warning method||Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)|
|Reject Ways||when has auto-reject system ,belt continue and rejecting the goods|
|Application||Non-package ,plastic package ,paper bag or box (non-metallic) product|
|Work Environment||Temperature -10℃-40℃ ,relative humility 30-90%|
|Detection width :||30-80 cm, Customized|
|Detection height:||8-50cm Customized|
|Detection sensitivity:||See table above|
|Alarm mode:||The buzzer alarm, the motor automatically stop|
|Transfer speed:||25 meter / min or you can select adjust speed|
|Power:||100-265VAC, 50-60Hz (According to customer request)|
