GB 14749-2006 5.12 Walker Seat Frame Structure And Strength Testing Machine

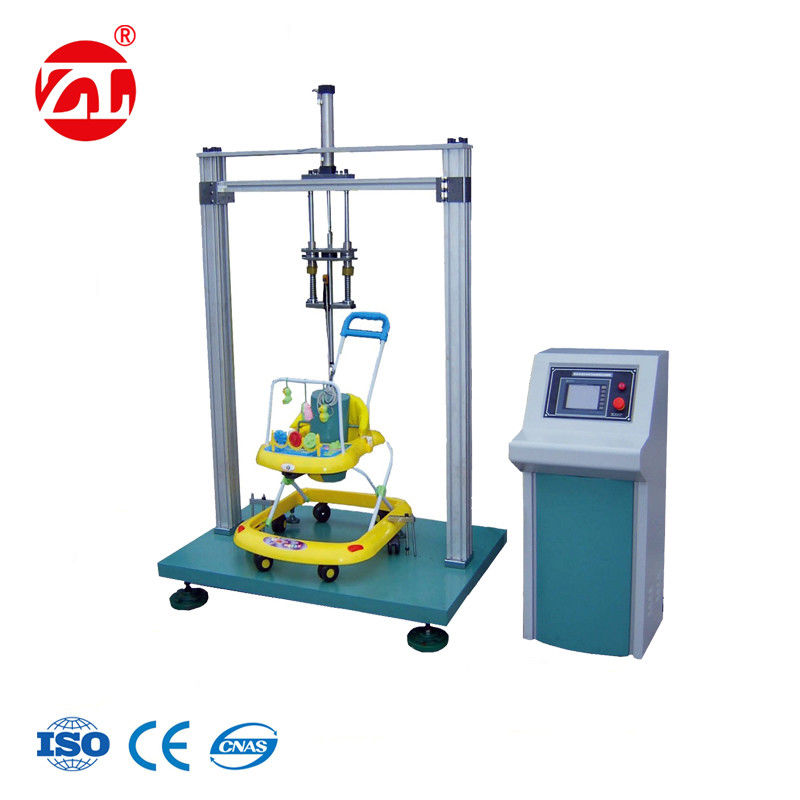

Large Image : GB 14749-2006 5.12 Walker Seat Frame Structure And Strength Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3108

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	GB 14749-2006 5.12 Walker Seat Frame Structure and Strength Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Walker Seat Frame Structure And Strength Testing Machine	Test Principle:	GB 14749-2006 5.12
Model Diameter:	Ф = 160mm ± 5mm	Model Height:	H = 280mm ± 5mm
Test Method:	Repeated 100 Times Determine Eligibility.	Free Fall Height:	60mm
Highlight:	abrasion testing equipment , fatigue testing machine

GB 14749-2006 5.12 Walker Seat Frame Structure And Strength Testing Machine

Product Overview

This testing machine is designed to evaluate walker seat and frame structures for cracks, impact resistance, and deformation phenomena according to GB 14749-2006 standard requirements.

Intended Use

The machine tests walker seats and frames for cracks after specified impact and deformation testing to determine product eligibility and safety compliance.

Testing Principle

Complies with GB 14749-2006 Section 5.12 standard requirements for walker seat frame structure and strength testing.

Testing Procedure

Position the walker seat to its lowest position and place the test model into the car
Raise the test model 60mm above the seat, then allow it to free fall
Repeat the experiment 100 times to determine eligibility

Test Model Specifications

Diameter: Ф = 160mm ± 5mm
Height: H = 280mm ± 5mm
Weight: G = 120 + 0.05kg

Product Image
