| Applicable Industry:: | Pram Industry | Max Load:: | Max 50 Pound |
|---|---|---|---|
| Test Speed:: | 15cycles/min±1cycle | Effective Height:: | Max 600mm |
| Testing Space:: | Single Stroller | Counter:: | 0~999,999times ( Can Set ) |
| Power Supply:: | AC220V 50Hz 3A Or Specified By User | Warranty:: | 12 Months |
| High Light: | abrasion testing equipment,abrasion testing machine |
||
Application:
This tester is made according to CNS requirement, this tester is to do the durability testing by simulating the stroller cross the barricade. The testing method is to put the infant model inside the stroller, raise the stroller to get the back wheels up 150mm from the ground, then press the handle down to get the front wheels up to 150mm from ground, and to do this action with the speed 15cycles/min. After 3000cycles continuous testing, to check the stroller if damage. The tester will automatically stop when reach the set testing cycles.
Standard: CNS 6263-12
Specification:

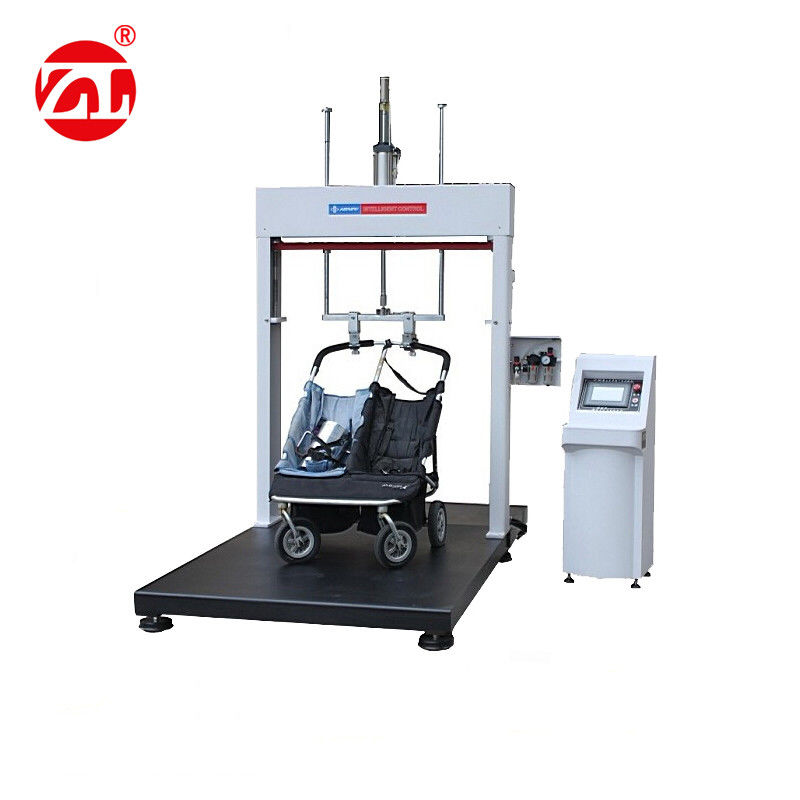

| Model | ZL-3107 Pram Lift and Underdraught Test Equipment |
| Max load | Max 50 pound |
| Stroke of testing | Go and back 120-150mm (stroke is adjustable by the screw stem) |
| Test speed | 15cycles/min±1cycle |
| Up and down adjustable range | Max 450mm (hand wheel adjusting) |
| Effective height | Max 600mm |
| Testing space | Single stroller |
| Counter | 0~999,999times ( can set ) |
| Weight | 600Kg |
| Dimension | W1650xD1100xH1900mm |
| Power |
AC220V 50Hz 3A or specified by user |
