Baby Cart Wheel Abrasion Testing Machine Used In Inspection Industries And Sectors

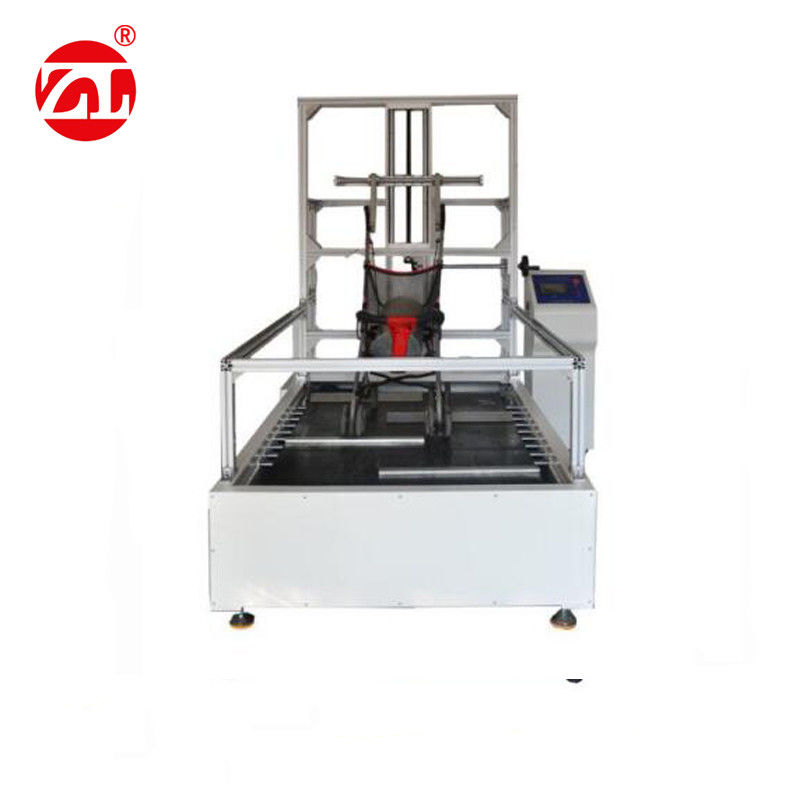

Large Image : Baby Cart Wheel Abrasion Testing Machine Used In Inspection Industries And Sectors

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3101

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Packaged within safety wooden case ( fumigation free）
Delivery Time:	7-10 Days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10 SET PER MONTH

Contact Now

Detailed Product Description

Power:	220V 50Hz	Conveyor Speed:	1.4±0.1m/sec;84m/min;5Km/H
Machine Lever Of Left And Right:	About 200mm,adjustable	Times Of Impact:	0~999,999 Times
Warranty:	12 Month	Material:	Sheet Metal + Paint
Highlight:	abrasion testing equipment , fatigue testing machine

Baby Cart Wheel Abrasion Testing Machine

Equipment Overview

Baby Cart Wheel Abrasion Testing Equipment designed for baby strollers based on hand-pushed pram standards for CNS dynamic durability testing. The testing method involves placing the pram in the machine and securing it on the test stage, then adjusting the belt speed to 1.4 ± 0.1m/sec for continuous testing over 64 hours to evaluate potential damage. The equipment automatically stops operation when the preset time is reached.

This single-station test machine features a compact structure that is easy to place and operate.

Compliance Standards

Manufactured in accordance with hand-pushed pram standards for both CNS dynamic durability testing and ASTM dynamic durability testing requirements.

Applications

Ideal testing instrument for pram manufacturers, research institutions, and product quality supervision and inspection industries.

Technical Specifications

Parameter	Specification
Model	Baby Cart Wheel Wear Test Equipment
Drive Mode	Canvas rubber convey belt as drive of power, coupled with a special steel roller convey belt reinforcement for secondary action
Conveyor Speed	1.4±0.1m/sec; 84m/min; 5Km/H
Pram Handle Fixing	Method of production based on the method of CNS rubber ring beam
Handle Link Distance	Approximately 300mm
Machine Lever Adjustment	Approximately 200mm, adjustable left and right
Impact Count	0~999,999 times
Aluminum Impact Block	2 sets (production based on your company's standard)
Impact Shape	Trapezoidal, semi-curved or designated
Dimensions	1800×1300×1900mm (L×W×H)
Power Requirements	220V 50Hz
Additional Features	Automatically determines specimen damage and shuts down automatically

Product Image
