EN 1888 ASTM F833 Standard Suitcase Walking Bump Tester Luggage Wheel Rolling Durability Testing Equipment

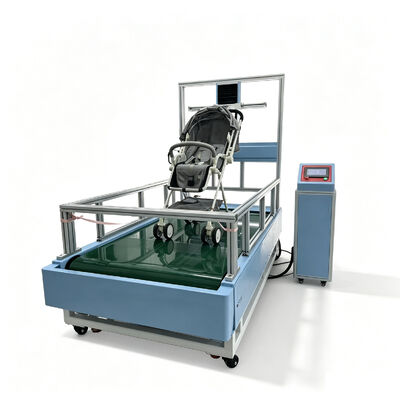

Large Image : EN 1888 ASTM F833 Standard Suitcase Walking Bump Tester Luggage Wheel Rolling Durability Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3104

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS3200
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Name:	Stroller Bumps Wear Testing Instrument	Conveyor Belt Speed:	Adjustable From 0-2 M/s
Working Width:	Maximum 1000 Mm	Lift The Cylinder Up And Down To Adjust The Height:	0-500 Mm
Drive Horsepower:	1-3 HP	Dimensions (L × W × H):	2100 × 1260 × 2000 Mm

EN 1888 ASTM F833 Standard Suitcase Walking Bump Tester Luggage Wheel Rolling Durability Testing Equipment

Instrument Overview

This testing equipment simulates irregular road conditions for child strollers, evaluating overall safety performance after specified testing cycles.

Testing Principle

The system places standard test weights on the vehicle platform while aluminum alloy impact blocks on a conveyor belt alternately lift wheels on both sides. Independent connecting handles move vertically and adjust width to accommodate various product types and sizes.

The conveyor system enables vehicle collision with obstacles at 5 km/h, automatically stopping after reaching preset test cycles.

Key Features

Touch screen display interface
Real-time monitoring of speed, distance, and time
PLC program control system
Programmable test frequency, cyclic testing, and interval timing
Dual closed-loop speed control for precision
Specialized structure prevents conveyor belt deviation and jamming
Customizable stroller handle fixing methods per standard requirements
Multiple grating protection for operator safety
Automatic power-off data saving with pre-selectable stop/continue options

Technical Specifications

Parameter	Specification
Test Station	1 station (standard), optional 2 stations
Conveyor Belt Speed	Adjustable 0-2 m/s
Working Width	Maximum 1000 mm
Connecting Rod Adjustment	Approximately 300 mm
Height Adjustment Range	0-500 mm
Impact Block Material	Aluminum alloy per standard requirements
Drive System	Canvas rubber conveyor belt with roller drive, reinforced rollers, special aluminum alloy belt
Drive Power	1-3 HP
Power Supply	AC 220V, 50 Hz, 5 KW
Dimensions (L * W * H)	2100 * 1260 * 2000 mm
Total Weight	450 kg

Compliance Standards

EN 1888, ASTM F833-13b, GB 14748, and related standards
