LCD Touch Screen + PLC Repeating Dropping Tester RS-DP-04-1 / 2 For Phone , CD

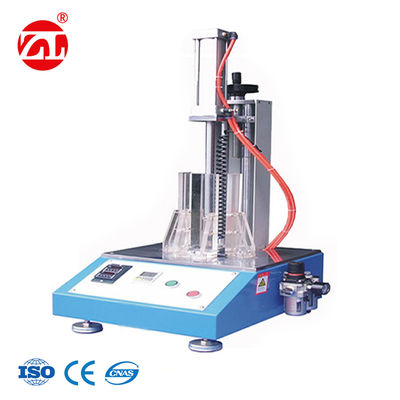

Large Image : LCD Touch Screen + PLC Repeating Dropping Tester RS-DP-04-1 / 2 For Phone , CD

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1613

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	LCD Touch Screen + PLC Repeating Dropping Tester RS-DP-04-1 / 2 is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	LCD Touch Screen + PLC Repeating Dropping Tester RS-DP-04-1 / 2	Test Load （max）:	2Kgf
Drop Height:	300mm (or Specified)	Test Speed:	5~25 Times/min
Test Cycle:	1~999,999times (cycle)	Air Source:	≥0.5MPa
Highlight:	mobile testing equipment , mobile phone testing machine

LCD Touch Screen + PLC Repeating Dropping Tester RS-DP-04-1 / 2 For Phone, CD

Product Overview

The LCD Touch Screen + PLC Repeating Dropping Tester models RS-DP-04-1 and RS-DP-04-2 are designed for repeated dropping (light dropping) testing of mobile phones, telephone receivers, interphones, MP3 players, CDs, electronic dictionaries, and similar devices. These testers verify whether product components and functions remain normal after multiple light drop impacts.

Applications

Ideal for repeated dropping testing of mobile phones, telephone receivers, interphones, MP3 players, CDs, electronic dictionaries, and other electronic devices to assess component durability and functional integrity after multiple light drop impacts.

Key Features

All testing conditions are input directly via touch screen interface
Utilizes Japan SMC precise pneumatic components for enhanced durability
Incorporates Mitsubishi high-quality LCD touch screen + PLC for programmable control

Technical Specifications

Parameter	RS-DP-04-1 (Economic)	RS-DP-04-2 (Precise)
Test Amount	1 PCS	2 PCS
Test Load (Max)	2Kgf (max)
Drop Height	300mm (or as specified)
Test Speed	5~25 times/min
Test Cycle	1~999,999 times (cycle)
Dimension (W×D×H)	420×370×850mm	850×370×850mm
Weight	25kg	80kg
Air Source	≥0.5MPa
Power Supply	AC220V 50Hz 3A or as specified by user
