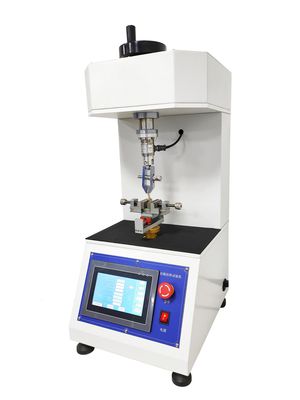

Zipper Head Torsion Lab Testing Machine Touch Screen Microcomputer Control

Zipper Head Torsion Lab Testing Machine Touch Screen Microcomputer Control
Zipper Head Torsion Lab Testing Machine Touch Screen Microcomputer Control Zipper Head Torsion Lab Testing Machine Touch Screen Microcomputer Control Zipper Head Torsion Lab Testing Machine Touch Screen Microcomputer Control

Large Image :  Zipper Head Torsion Lab Testing Machine Touch Screen Microcomputer Control

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-7063
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Zipper Head Torsion Tester is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Touch Screen Control Zipper Head Torsion Tester , Lab Testing Machine For Zipper Heads Torque Range: 5.000N.m (500cn.m)
Torque Accuracy: 0.1 Cn.m Torsion Angle: ±150°
Torsion Angle Accuracy: 0.1° Torsional Speed: 0.1° Torsional Speed 0.5r/min-2.0r/min
Deceleration Ratio: 20 Times Power Supply: AC220V, 50Hz, 100W
High Light:

leather testing equipment

,

leather measuring machine

Touch Screen Microcomputer Control Zipper Head Torsion Lab Testing Machine





[Scope of application] :



Used for testing the torsion strength of various zipper heads.



[Up to standard] :



QB/T 2171, QB/T 2172, QB/T 2173



[Instrument characteristics] :



1. Touch screen control, simple interface, easy to operate, touch sensitive, switch between Chinese and English.

2. The torsional fixture is made of stainless steel, with a simple and elegant appearance.

3. The rotating structure adopts low noise reducer, which runs smoothly and has low noise.

4. Three test methods: torsion break test, fixed Angle and fixed load.

5. Can connect to computer and printer.

6. All experimental data can be inquired without connecting to the computer.

7, Microcomputer control, automatic testing, calculation and analysis results, printing data.

8. Units can be switched (cn.m and N.m).



[Technical parameters] :



Torque range 5.000N.m (500cn.m)
Torque accuracy 0.1 cn.m
Torsion Angle ±150°
Torsion Angle accuracy 0.1°
Torsional speed 0.5r/min-2.0r/min
Deceleration ratio 20 times
Power supply AC220V, 50Hz, 100W
External dimensions 460×410×550mm
Weight 50kg
