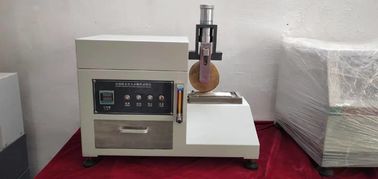

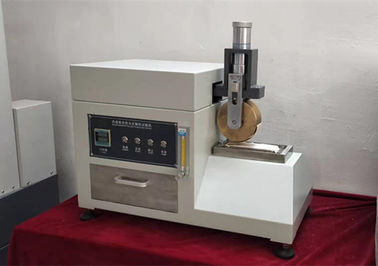

|Product Name:||LCD Lab Shoes Insole Moisture Absorption And Desorption Testing Equipment||Timer:||LED, Accurate To 0.01s, 1 ~ 100hr|
|Counter:||6 Digit Display LCD||Flow Rate:||7.5±2.5ml/min|
|Cylinder Reciprocating Movement Frequency:||20 Times / Min||The Test Tank Diameter:||120mm , Width 50mm|
leather testing equipment,
leather measuring machine
For raw material uppers, such as: leather, leather, cloth, etc., and cut the specimen, the specimen is placed on a wet floor, under a certain pressure to make repeated flexing action test. To detect material resistant to penetration index, absorbent insole and insole reconciliation adsorption capacity, or for the development of improved materials, waterproof the basis
1. The test tank, diameter 120mm width 50mm is placed on the roller test piece, by means of compression force: 80±5N
spring or pneumatic system makes the test strip against the drum, the drum in both directions about a horizontal line to the amplitude of each 50mm scroll horizontally reciprocating displacement .
2. cylinder reciprocating movement frequency 20 times / min, reciprocating displacement: 50±1mm
3. The test piece is fixed on one end of the drum, and the other end is fixed on the platform, so that the drum axis is always parallel to the two ends of the test piece. Will be fixed on the fixing roller pressing spring hooked piece with the other, the spring hook with a slight stress test strip test pieces in order to avoid wrinkles.
4.The platform surface roughness 25μm, top lined with 3 to 5 layers of cotton cloth, by pipeline through the platform surface slowly out of the water to keep moist. Flow rate: 7.5±2.5ml/min
5. The instrument is equipped with indication of water penetration audible alarm devices.
6. Timer: LED, accurate to 0.01s, 1 ~ 100hr.
7. Counter: 6 digit display LCD.
8. Die (Optional): conform cut (110±1)mm, width (40±1)mm of die cutter.
