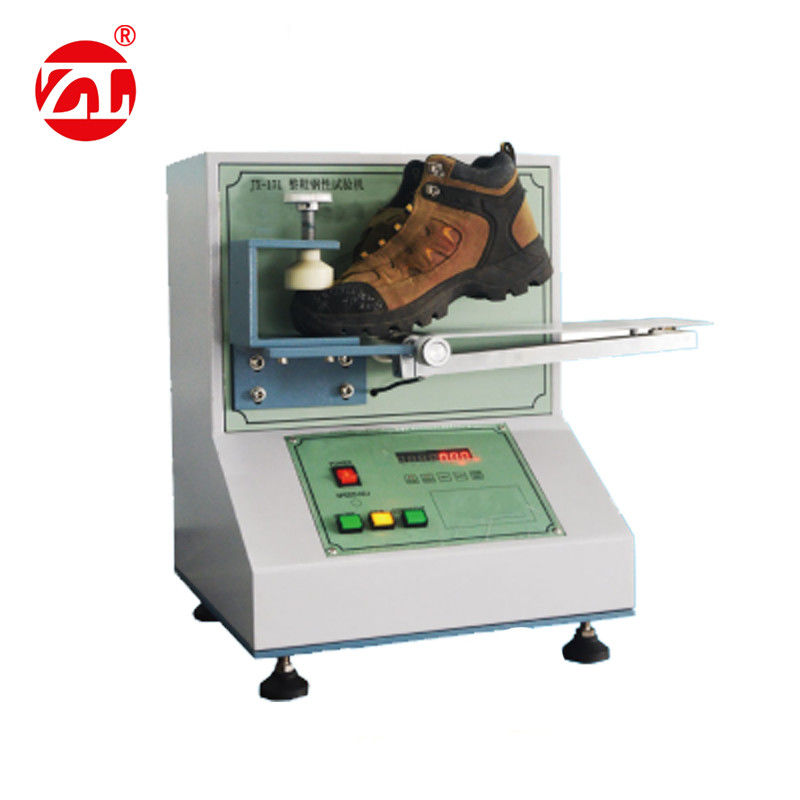

Shoe Rigidity Testing Machine , Bending Resistance Angle Of 45 Degrees

Shoe Rigidity Testing Machine , Bending Resistance Angle Of 45 Degrees
Shoe Rigidity Testing Machine , Bending Resistance Angle Of 45 Degrees

Large Image :  Shoe Rigidity Testing Machine , Bending Resistance Angle Of 45 Degrees

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-7059
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Whole Shoe Rigidity Testing Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets / month
Contact Now
Detailed Product Description
Product Name: Whole Shoe Rigidity Testing Machine Bending Speed: (100 ± 10) Mm / Min.
Unit Switching: Kg, Lb, N, Etc. Can Be Switched. Hinge Distance: 315mm
Load Accuracy: ±1%. Volume: 67*53*65cm.
Weight: 60kg. Power Supply: AC220V, 10A.
Highlight:

leather testing equipment

,

leather measuring machine

Shoe Rigidity Testing Machine, Bending Resistance Angle Of 45 Degrees
Instrument Overview

The whole shoe with the zigzag line is installed on the testing machine, and a force of (30±0.5)N is applied to the plane mounted hingedly from the hinge to reach the bending resistance angle of 45 degrees. This assessment determines whether the sole bending test is performed successfully.

Compliance Standards

Complies with ISO EN20344-2010, GB/T20991-2007 and other relevant standards.

Technical Specifications
Model ZL-7059
Bending Speed (100 ± 10) mm/min
Unit Switching kg, lb, N, etc. can be switched
Hinge Distance 315mm
Load Accuracy ±1%
Volume 67×53×65cm
Weight 60kg
Power Supply AC220V, 10A
Included Accessories
  • The size of each palm
  • One power cord
