Shoes Material Water Vapor Permeability Test Chamber Human - Machine Interface

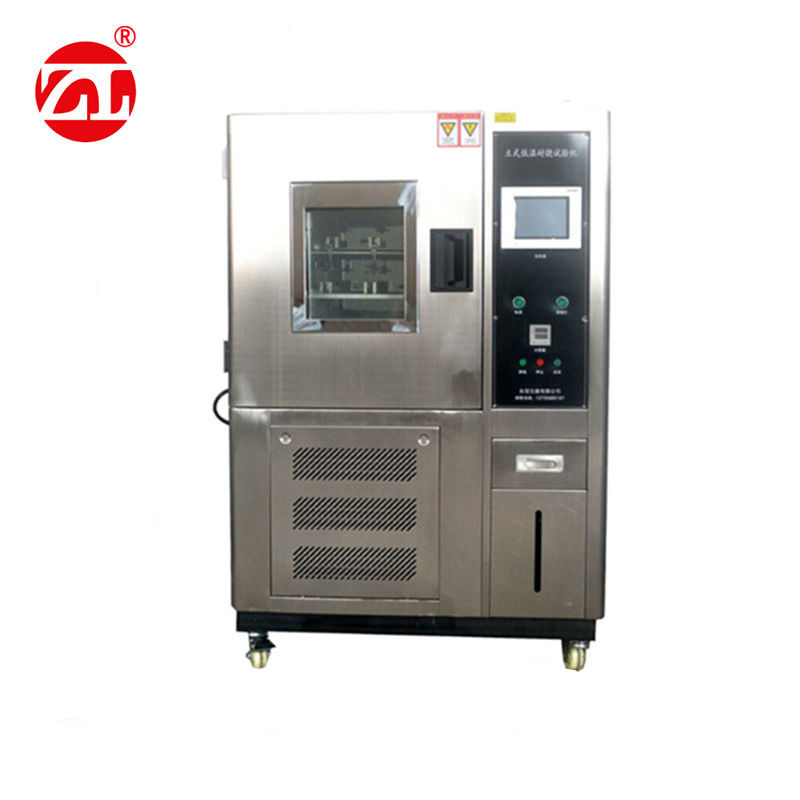

Large Image : Shoes Material Water Vapor Permeability Test Chamber Human - Machine Interface

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7056

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Shoes Material Water Vapor Permeability Test Chamber is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	Shoes Material Water Vapor Permeability Test Chamber	Meet Standards:	GB/T 20991, SATRA TM172, EN / ISO 20344
Temperature Range:	0- 100°C	Temperature Fluctuation:	±0.5°C
Temperature Uniformity:	2 ℃	Humidity Range:	30 - 95% R.H
Humidity Fluctuation:	±2.5% R.H	Humidity Uniformity:	3.0% R.H
Cooling Time:	40 Minutes From +20°C To 0°C	Specimen Size:	34 Mm
Highlight:	leather testing equipment , leather measuring machine

Shoes Material Water Vapor Permeability Test Chamber - Human-Machine Interface

Equipment Overview

The Shoes Material Water Vapor Permeability Test Chamber with Human-Machine Interface is designed to test the water vapor permeability of shoe uppers and upper materials (including leather and lining) in a controlled environment of 20°C and 65% RH.

Featuring stainless steel painted outer boxes for durability and aesthetic appeal, this equipment utilizes imported compressors and programmable temperature and humidity controllers. The human-machine interface offers intuitive touch operation for intelligent control and monitoring.

Compliance Standards

GB/T 20991
SATRA TM172
EN / ISO 20344

Construction Materials

Inner box material: Stainless steel grade mirror light board (SUS 304)
Carton material: Stainless steel matte line processing (SUS 304)
Insulation material: Hard foam

Technical Specifications

Temperature Range	0-100°C
Temperature Fluctuation	±0.5°C
Temperature Uniformity	2°C
Temperature Rise Efficiency	Approximately 30 minutes from +20°C to 100°C
Cooling Time	40 minutes from +20°C to 0°C
Humidity Range	30-95% R.H
Humidity Fluctuation	±2.5% R.H
Humidity Uniformity	3.0% R.H
Bottle Mouth Diameter	Approximately 30 mm
Test Plate Speed	75±5 cpm
Test Temperature	Normal temperature RT-60°C, accuracy ±0.1°C
Specimen Size	34 mm
Fan Size	90 x 75 mm
Fans	3 pcs
Fan Angle	Parallel to the axis 120°
Fan Speed	1400 cpm
Weight	240 kg
Power Supply	1∮, AC220V, 50Hz, 15A
