LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）

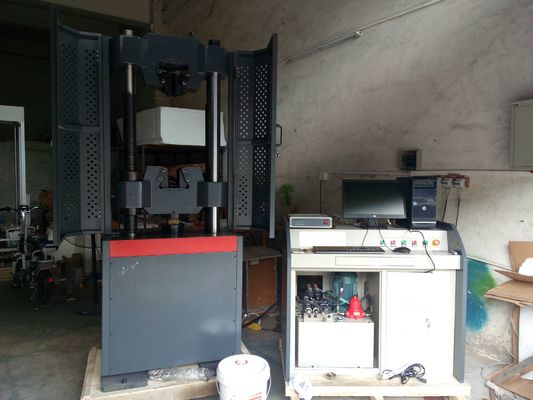

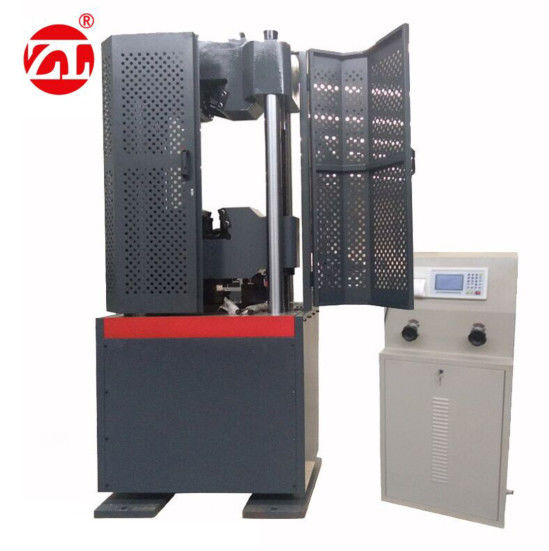

Large Image : LCD Digital Display Hydraulic Universal Testing Machine（ 100 , 300 , 600 ,1000KN ）

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	LCD Digital Display Hydraulic Universal Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	LCD Digital Display Hydraulic Universal Testing Machine	Range:	Whole Journey Didn't Sub-file ,equivalent 3 Grade
Test Force Measuring Range:	4%-100%FS KN	Test Force Resolution:	0.01kN
Displacement Measurement Resolution:	0.01mm	Shear Specimen Diameter:	10mm
Pump Motor Power:	1.1kw	Beam Moves Up And Down Motor Fixed Rate:	0.75kw
Highlight:	tensile test machine , tensile strength testing machine

LCD Digital Display Hydraulic Universal Testing Machine (100, 300, 600, 1000KN)

Product Overview

The ZL-8010 LCD Digital Display Hydraulic Universal Testing Machine is designed for comprehensive material testing applications across multiple industries and material types.

Applications: Testing of various metal materials including tensile, compression, bending, and shearing tests. Also suitable for plastic, concrete, cement, and other non-metallic materials compression tests. With simple accessories, can perform chain tape, wire, welding rod, tile, and various component performance tests.

Key Features

Host Design: Oil cylinder under mounted type host with stretching space at the top and compression test space between work table and crossbar
Transmission System: Down beam movement via motor reducer, chain drive mechanism, and vice screw drive for adjustable tensile and compression spaces
Hydraulic System: Efficient oil circulation system with filter screen protection and precise flow control
Control System: Electronic force measurement with LCD display showing test force-time curves, peak test power, and material yield strength characteristics
Safety Protection: Overload protection (3% of maximum test force) and stroke protection with automatic pump motor shutdown
Fixture Options: Custom fixtures available according to customer requirements

Technical Specifications

Parameter	100KN	300KN	600KN	1000KN
Max Load (KN)	100	300	600	1000
Range	Whole journey didn't sub-file, equivalent 3 grade
Test Force Measuring Range	4%-100% FS
Test Force Resolution	0.01kN
Displacement Measurement Resolution (mm)	0.01
Max Tensile Test Space (mm)	550	650	750	-
Max Compression Space (mm)	380	460	-	-
Diameter of Round Specimen Clamp Jaw (mm)	Φ6-Φ26	Φ13-Φ40	-	-
Pump Motor Power (KW)	1.1
Beam Moves Up/Down Motor Fixed Rate (KW)	0.75
Net Weight (Kg)	1600	1800	2000	2600
