ASTM D-2099 Upper Of Leather Dynamic Waterproof Testing Machine

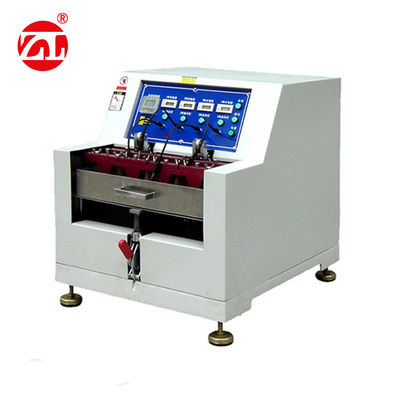

Large Image : ASTM D-2099 Upper Of Leather Dynamic Waterproof Testing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Upper of Leather Dynamic Waterproof Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Upper Of Leather Dynamic Waterproof Testing Machine	Testing Speed:	90 ± 5 Rpm
Testing Displacement Or Angle:	1 ° Or 30 ± 1 °	Specimen Number:	4 Groups
Specimen Size:	4 "x4" ± 0.125 "(101.6 × 101.6 ± 3.2mm)	Ball Size (load):	(1 / 8 "× 3mm)
Ball Total Weight (load):	135 ± 5gs	Counter:	Six-digit LCD Digital Display
Highlight:	shoes test machine , leather testing equipment

ASTM D-2099 Upper Of Leather Dynamic Waterproof Testing Machine

The ASTM D-2099 Upper of Leather Dynamic Waterproof Testing Machine evaluates leather's waterproof performance through dynamic testing with standardized steel balls placed inside the material.

Equipment Summary

This testing machine utilizes standard steel balls placed inside leather specimens to conduct waterproof and twist testing. Before testing, operators set the required number of reverse cycles. The machine automatically shuts down when the preset cycle count is reached. Equipped with advanced sensors, the instrument automatically stops timing and displays the twist time when water infiltration is detected within the leather specimen.

Corresponding Standards

ASTM D-2099
SATRA PM-34
ALCA E56

Applicable Industries

This testing equipment is essential for evaluating leather performance across multiple industries including footwear, apparel, luggage, and handbag manufacturing. It serves research laboratories, quality inspection departments, arbitration bodies, and technical supervision organizations.

Technical Parameters

Parameter	Specification
Model	ZL-7018
Testing Speed	90 ± 5 rpm
Testing Displacement/Angle	1° or 30 ± 1°
Specimen Number	4 groups
Specimen Size	4"×4" ± 0.125" (101.6 × 101.6 ± 3.2mm)
Ball Size (Load)	(1/8" × 3mm)
Ball Total Weight (Load)	135 ± 5gs
Counter	Six-digit LCD digital display
Dimensions (W×D×H)	60 × 40 × 45cm
Power Supply	1 phase, 220V, 50/60Hz
Motor	200 W
Weight	80 Kg
