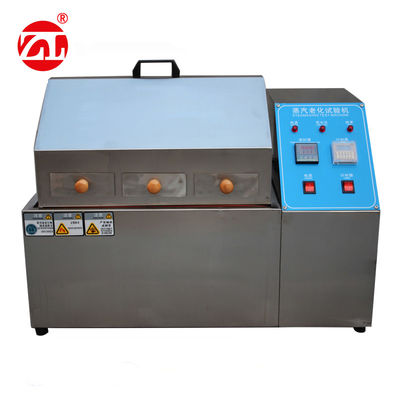

Heat Steam Aging Test Machine In The Electrical , Electronic , Diodes , LCD

Large Image : Heat Steam Aging Test Machine In The Electrical , Electronic , Diodes , LCD

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6026

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Heat steam aging test machine is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Heat Steam Aging Test Machine	Test Basket.W×H×D(mm):	500 X 400 X 170 MM
External Dim.W×H×D(mm):	600×500×420 MM	Heating Systems:	Chrome Steel Strip Wire Heater
Controller:	Digital Electronic Indicators Controller+S.S.R.With P.I.D & Timer Max 9,990mins	Safety Devices:	Overheating Prevention Protector, Water Shortage Protector, Steam Outlet Hole
Highlight:	temperature humidity test chamber , impact test equipment

Heat Steam Aging Test Machine

Product Overview

Steam aging tester is used to test and determine the parameters and performance of electrical, electronics, and other products and materials under high temperature, low temperature, or temperature-controlled environmental changes. Applications include electronic connectors, semiconductors, transistors, diodes, LCD displays, chip resistors, capacitors, and component industry electronic components metal pin wetting resistance testing before aging accelerated life testing.

Technical Specifications

Model	ZL-6026A
Test Basket Dimensions (W×H×D)	500 × 400 × 170 mm
External Dimensions (W×H×D)	600 × 500 × 420 mm
Temperature Range	R.T + 10°C ~ +97°C
Temperature Constancy	±0.3°C
Temperature Resolution	±0.1°C
Heat-up Time	45 minutes
Exterior Material	SUS#304 Stainless Steel Plate
Interior Material	SUS#304 Stainless Steel Plate
Insulation	PU & Fiberglass Wool
Heating System	Chrome Steel Strip Wire Heater
Controller	Digital Electronic Indicators Controller + S.S.R with P.I.D & Timer (max 9,990 minutes)
Safety Devices	Overheating prevention protector, Water shortage protector, Steam outlet hole, No fuse breaker
Power Source	AC 1Ψ 220V 60/50Hz (1.1 - 2.5 KW)

Key Features

Microcomputer digital LED controller
Time planning function capability
Comprehensive safety devices including multi over-temperature protection and automatic power off when out of water
Designed for high temperature/high humidity testing of spare parts and components
Digital electronic indicators with S.S.R and PID automatic calculation capability
Time planning function with maximum setting of 9990 minutes
Includes reverse osmosis water purifier
