Wire and Cable air Ventilation Aging Test Chamber with High and Low Temperature

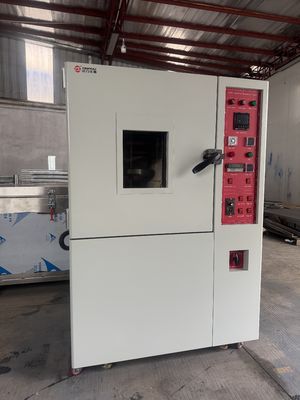

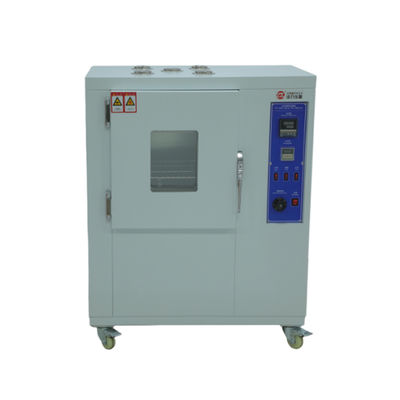

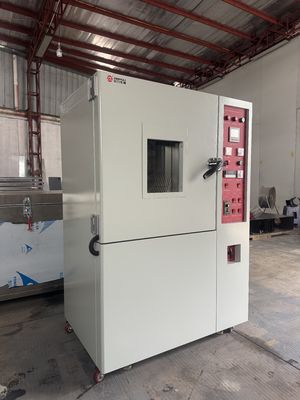

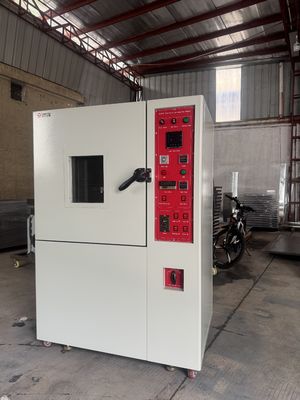

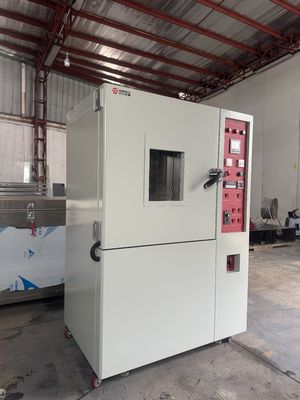

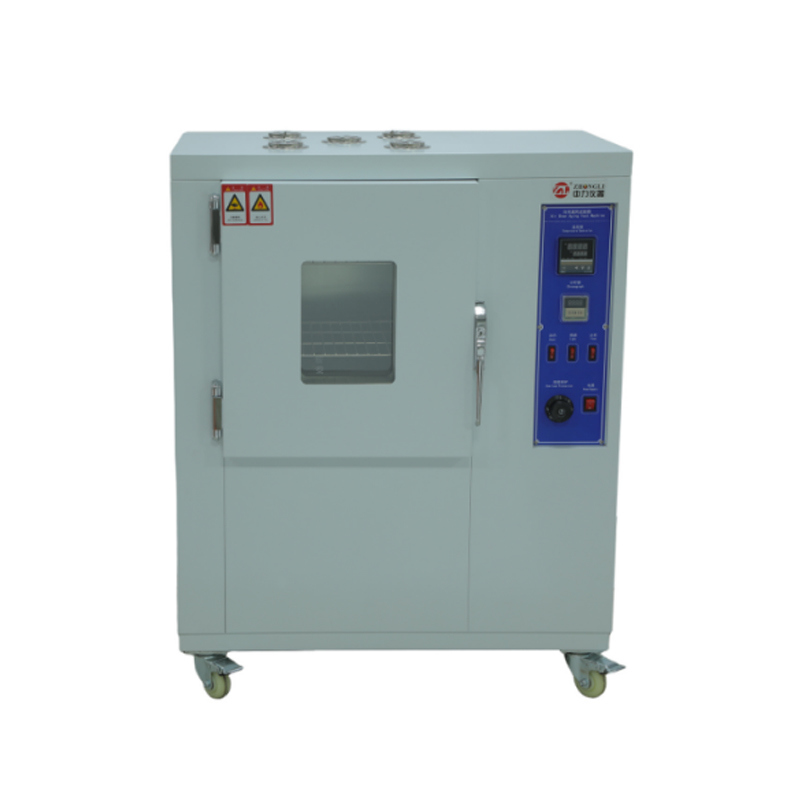

Large Image : Wire and Cable air Ventilation Aging Test Chamber with High and Low Temperature

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Zhongli
Certification:	ISO,CE
Model Number:	ZL-6010C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wire and Cable air Ventilation Aging Test Chamber with High and Low Temperature Packaged in wooden case
Delivery Time:	7~10 days after the order confirmed
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Wire And Cable Air Ventilation Aging Test Chamber With High And Low Temperature	Temperature Range:	Ambient RT ~ 250°C
Inner Chamber Dimensions:	45 × 45 × 50 Cm	Temperature Control:	PID Digital Setting
Test Rack:	Two Trays	Timer:	0 ~ 9999 H/M/S
Temperature Resolution:	0.1°C	Temperature Fluctuation:	±1°C
Highlight:	Wire and Cable test chamber with ventilation , Environmental test chamber with temperature control , Aging test chamber for high and low temperature

Wire and Cable air Ventilation Aging Test Chamber with High and Low Temperature

Overview:

The Natural Ventilation Aging Tester is suitable for the footwear, leather, wire and cable, electronics industries, etc., used to study the physical property changes of various test specimens under heated conditions over a fixed period. The natural convection function ensures uniform temperature distribution. Complies with standard GB/T2951.12-2008.

Usage Features:

1.Utilizes microcomputer-based electronic digital control, ensuring precision, accuracy, stability, and reliability.

2.The chamber body uses silicone molded insulation packing, resistant to high temperatures and non-aging; includes an observation window for convenient viewing of samples during testing.

3.Heating employs a natural circulation (convection) air supply method, enabling rapid temperature rise and uniform distribution.

4.P.I.D. control system with dual over-temperature protection, ensuring safety and reliability.

5.Simple temperature setting, making operation more convenient.

6.Equipped with storage trays, adjustable in height as needed.

Technical Specifications:

1. Temperature Range	Ambient RT ~ 250°C
2. Inner Chamber Dimensions	45 × 45 × 50 cm
3. Temperature Control	PID Digital Setting
4. Test Rack	Two trays
5. Timer	0 ~ 9999 H/M/S
6. Temperature Resolution	0.1°C
7. Temperature Fluctuation	±1°C
8. Air Circulation	Natural Convection
9. Observation Window	Square viewing window
10. Material	Inner Chamber SUS #304 Stainless Steel, Outer Case Electrostatic Spray Paint (Baked Enamel)
11. Unit Weight	Approx. 90 kg
12. Unit Dimensions (Approx.)	835 × 500 × 1080 mm
