Product Name: | Vertical Injection Molding Machine For Small And Medium - Sized Embedded Parts | Product Use: | AC/DC Plug Injection Molding, Other Plastic Injection Molding |
---|---|---|---|
Screw Diameter: | 25mm | Screw Speed: | 0-200 Rpm |
Injection Amount: | 45g | Motor Power: | 3 Kw |
Mold Opening Stroke: | 160mm | Key Words: | Injection Molding Machine |
Highlight: | rubber tensile testing machine,rubber testing equipments |

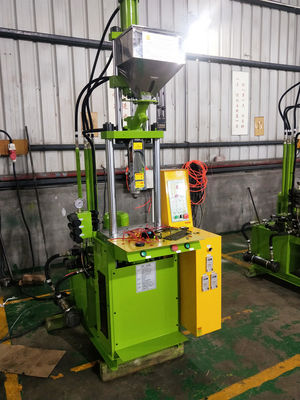

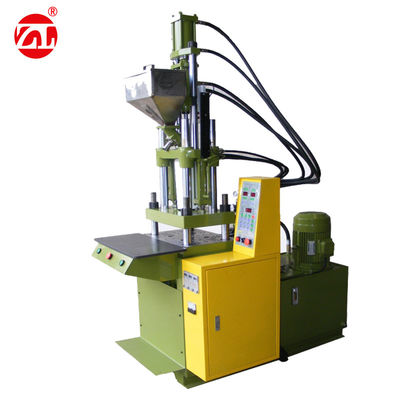

Vertical Injection Molding Machine For Small And Medium-sized Embedded Parts
Product advantages
1. Vertical clamping, vertical injection, small footprint, smart and precise, suitable for injection molding of small and medium-sized embedded parts, high injection pressure, fast rate of fire, and best choice for thin parts.
2, Direct pressure mode-locking, uniform stress distribution, low-pressure protection, smooth and excellent flow.
3, According to the characteristics of embedded parts and capacity needs, with a skateboard type or turntable type, to achieve the minimum input maximum output.
4, Expandable programming, with automatic embedded, take out equipment connection, fully automatic operation
5. In-line reciprocating screw injection mode device, which uses a hydraulic motor to spirally feed to improve the mixing of materials.
6, 3 section temperature control device, injection speed, back pressure without segment adjustment, suitable for the molding of various precision engineering plastics.
7. The lower mold is fixed, the upper mold is lowered and the mold is closed, and there is a good positioning for the embedded items, and there is a finished product ejection device.
Related Machine:
1.Banbury Mixer 2.Vulcanizing Press Machine
3.Rubber Mixing Mill 4.Three-Roll Grinding Mill
5.Twin-Screw Extruder 6.Moving Die Rheometer
Catalog about Rubber Products:
Technical parameters:
Product use | AC/DC plug injection molding, other plastic injection molding |
Screw diameter | 25mm |
Screw speed | 0-200 rpm |
Injection amount | 45g |
Injection pressure | 1098Mpa |
Theoretical injection capacity | 49 cubic centimeters |
Motor power | 3 kw |
Clamping force | 15 kN |
Mold opening stroke | 160mm |
Weight | 600kg |
Dimensions | 1400*800*2100 mm |
