Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Precision Thermal Conductive Tester | Thermal Conductivity Range And Accuracy: | 0.00001 ~ 3W/mk, Can Be Measured Accurately To 0.1mw/mk. 0.001 ~ 300W/mk |
|---|---|---|---|
| Measurement Accuracy: | 1% | The Sample Size: | 50 * 50 ~ 300 * 300 (mm). Special Size Can Be Customized |
| Measurement Time: | 15-20min | Sample Pressure Range: | 0-1000N |
| High Light: | rubber tensile testing machine,rubber hardness tester |
||

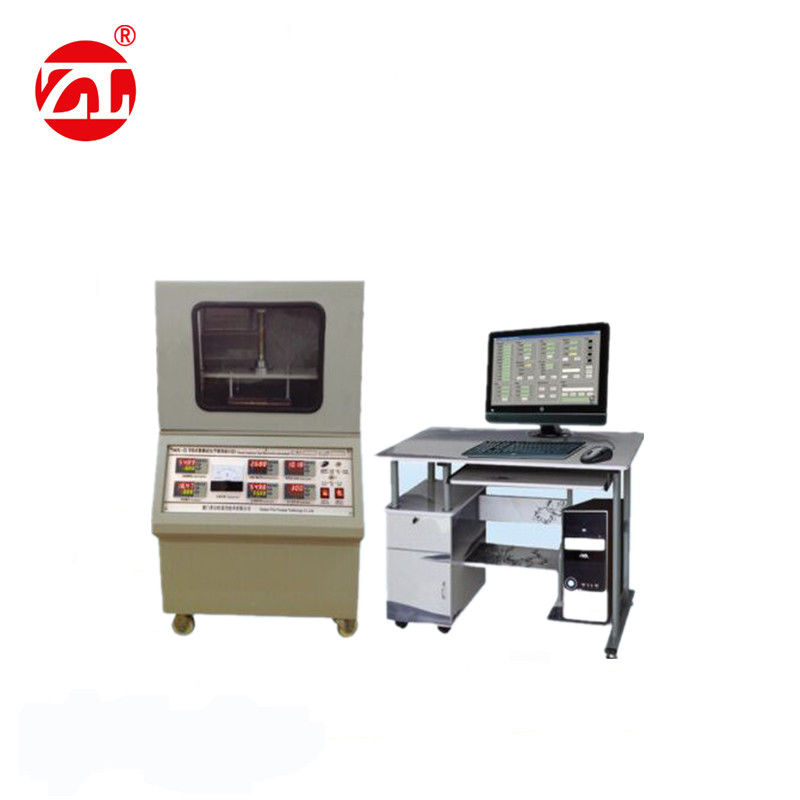

High Precision Thermal Conductive Tester , Automatic Test And Print Storage
Summary:
Check the thermal conductivity and thermal resistance by the heat flux method is popular in the world, to achieve automatic detection with computer generated test report. Instruments by adding hot surface temperature stability on the sample side heat transfer to the surface through the specimen, transfer heat flux measurement to calculate the thermal conductivity and thermal resistance. Imported sensors and computer technology, measurement accuracy well, high reliability and good reproducibility. Particularly suitable for measuring low thermal conductivity (accurate to 0.1MW). Can be used for plastic, rubber, insulation materials testing, widely used in universities, research institutes, quality inspection, factories and mines. Reference: GB/T10295-2008 (heat thermal insulation -- Determination of steady-state thermal resistance and related properties the test method and ASTM C518-04 method) to measure the transmission characteristics for steady state heat flux and heat with heat flow meter method.
Technical parameters :
| Thermal conductivity range and accuracy |
0.00001 ~ 3W/mk, can be measured accurately to 0.1mw/mk. 0.001 ~ 300W/mk |
| Measurement accuracy | 1%. |
| The sample size | 50 * 50 ~ 300 * 300 (mm). Special size can be customized |
| Used for | Can test solid materials, powder materials |
| Measurement time | 15-20min |
| Hot surface temperature and control | Room temperature -199.9 C (standard configuration), room temperature -499.9 degrees Celsius, according to user requirements to determine a higher temperature. Flat heater, two-way SCR control, temperature control accuracy of 0.1 degrees Celsius |
| The surface temperature and control | 0-99.9 C (standard), -10-99.9 C, according to the requirements of users can determine the lower temperature. Cold adopts water cooling, to ensure the surface temperature stability (precision constant temperature water tank, temperature adjustable), temperature control accuracy of 0.1 degrees. |
| Sample | The sample using the computer precision pressure clamping; Sample thickness automatic measurement, 0-50mm, resolution 1um |
| Pressure range | 0-1000N |
| Resolution | 0.1N. |
Features:
