Real Time And High Precision Cylinder Pressure Tester 0.2-0.8MPa Driving Pressure

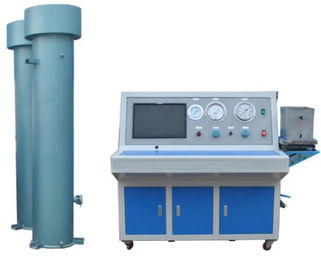

Real-time and High-precision Cylinder pressure tester

Introduction:

ZL-3021B Cylinder outside the test pressure test bench is the reference standard GB / T 9251-2011 Cylinder pressure test method and CGA C-1 "compressed gas cylinders of water pressure test method" in the cylinder pressure test method, Test device and method of operation.

The device is developed in strict accordance with China's cylinder water pressure test standard and American DOT standard.

Compared with the traditional manual external measurement device, the computer controlled external measuring device has the advantages of real-time and high-precision data acquisition. Can be real-time data display, after the test save, query and other functions.

The production of water pressure test cylinder cylinders, which are widely used in fire cylinders, breathing cylinders, cylinders of mixed gas, natural gas cylinders, high pressure vessels and other equipment, water pressure test. With automatic data acquisition, automatic control, print the annual test report of the cylinder test. Widely used in various scientific research institutes, the export of military testing cylinders, fire factories and other places need to test the cylinder pressure.

Piping system using non-welded connection. Test fluid system and drive fluid system separation, easy to test pressure control and test media diversification. computer control. The sampling data of high-speed sampling card are adopted. To meet the different installation of the specimen hose.

Technical Parameters:

1.Test medium :water

2.Test pressure :0-40MPa

3.Pressurized flow low pressure :1.2L / min

4.Driving pressure :0.2-0.8MPa

5.Driving flow :0.3-1 cubic meters / minute

6.Time display :computer display

7.Pressure curve display :data acquisition software real-time display, you can put shrink

8.Print Report :When the test is completed, a test report can be printed and the test data saved

Save the test data can save the report and excel test table, no time to collect the data can be saved

9.Display accuracy :0.1MPa

10.Control accuracy :0.5%

Use Conditions:

1. Power supply: AV200V 50HZ single phase

2. Air source: dry and clean air 0.8 ~ 1.0MPa, 1m³ / min

3. Experimental water: clean fresh water

4. Ambient temperature: 1 ~ 40 ℃

5. Relative humidity: <85%

Others:

1. Water jacket cavity specifications: Ф specific size of the cylinder set

2. Pressure test pressure: <40MPa

3. Equipped with test pump Model: MA80 gas drive pump

4. Test pressure pump pressure ratio: 80: 1

5. Test pressure pump discharge flow: 1.3L / min (200bar)

6. Pressure sensor: Range 0 ~ 40MPa (4 ~ 20mA)

7. Equipped with electronic balance: Range 0 ~ 1000g / 0.1g

8. Water jacket compression cylinder: expansion sleeve to tighten (single station).

9. Working air pressure: 0.5 ~ 0.8MPa

10. Maximum air consumption: 1m ³ / min

11. Power supply: AC220V / 50HZ
