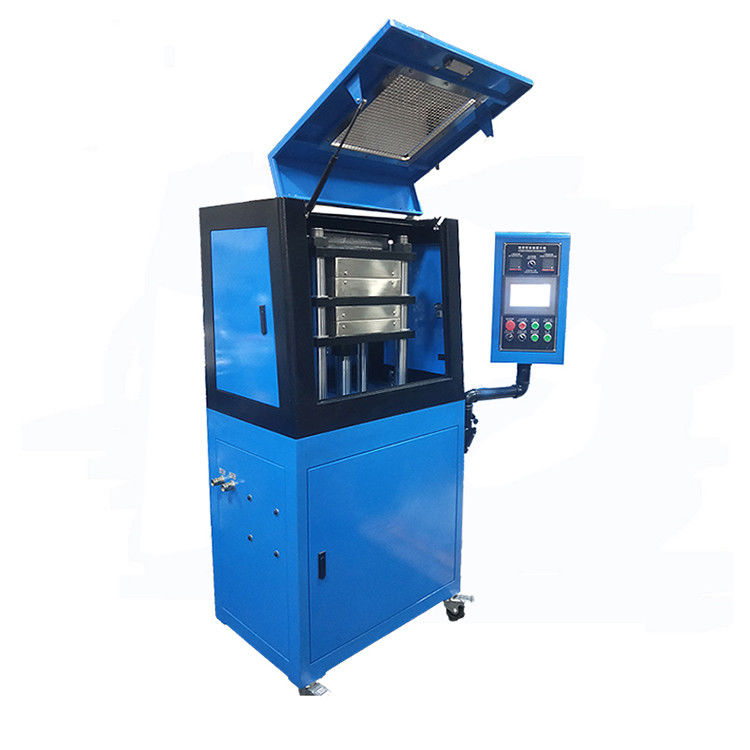

Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine

Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine
Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine
video play

Large Image :  Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3022
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Laboratory Hydraulic Press Vulcanizing Tester is packed in a polybag, then packed as export safety wooden case Port
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Laboratory Hydraulic Press Vulcanizing Tester Capacity: 10~50ton Select-able
Temperature Range: RT-300℃ Hot Platen: 300×300mm
Cold Plate: 300×300mm Heating Mode: Electricai Heating Or Oil Heating
Cooling Mode: Compressor Water Cooling System Or Air Cooling Key Words: Hydraulic , Vulcanizer
High Light:

rubber tensile testing machine

,

rubber hardness tester

Laboratory Hydraulic Press Vulcanizing Tester Lab Hot press machine



Product Description


1.Instruction:.
Lab Rubber Compression Molding Machine is placed in the casting mold and clamped between the

electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving

as the basis for the ingredient of mass production.



2.Parameters:

Product Name Lab Rubber Compression Molding Machine
Capacity 10~50ton  ( Option )
Temp. Range Room temp. ~300℃
Temp. Controller LED Indicator,press key set input, the value indicate output
Timer LED display,time range 0.1S~99min~9.9hr
Heating type Electrical Heating module
Hot pressure plate 300×300mm
Cold pressure plate 300×300mm
Distance of pressure plate 100mm
Pressure material SKD chromium-molybdenum alloy
Pressure surface Mirror chrome plated
Cooling temperature scope Room temp. ~+5℃
Cooling type Tap water cooling/compressor cooling water(optional)
Oil pressure system

The proportion hydraulic pressure current

capacity loop circuit control

system,the GPY oil pump driver high

performance electroencephalographic

matching high accuracy non resistance piston of oil cylinder carry

out constant speed rate control mode, can preelection one, two

times pressure and time.

Oil cylinder stroke Max 200mm
Oil cylinder speed 11mm/s
Pressure gauge 0~350kg/sq.cm
power 10.6HP
Dimension W×D×H 1000×500×1500 mm
Power supply AC380V,20A
Weight

About 658kg





Download Brief:

ZL-3022 Laboratory Hydraulic Press Tester; Lab Ho...



Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine 0



Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine 1



Laboratory Hydraulic Rubber Press Vulcanizing Tester , Lab Hot Press Machine 2



FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.



2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 95 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.



6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.



8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.



9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
