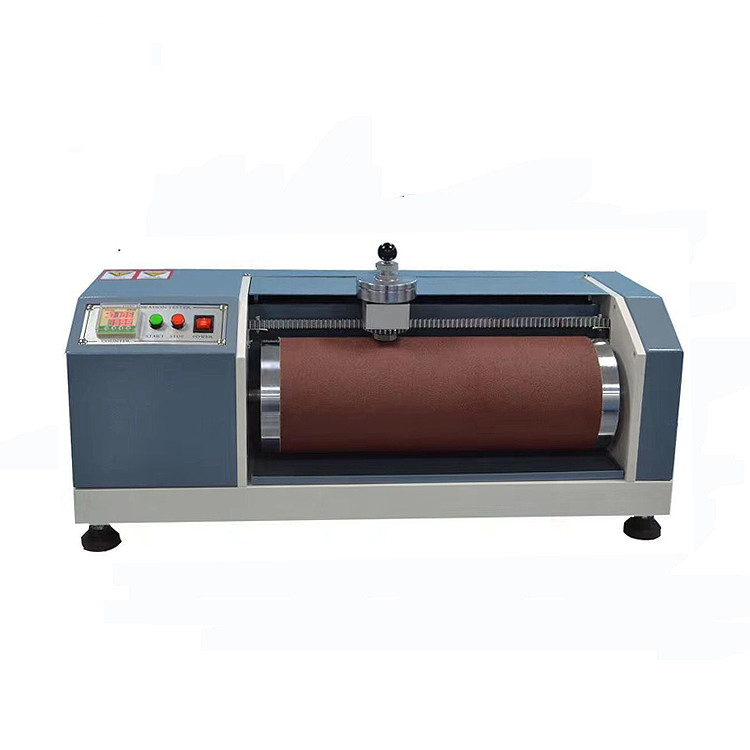

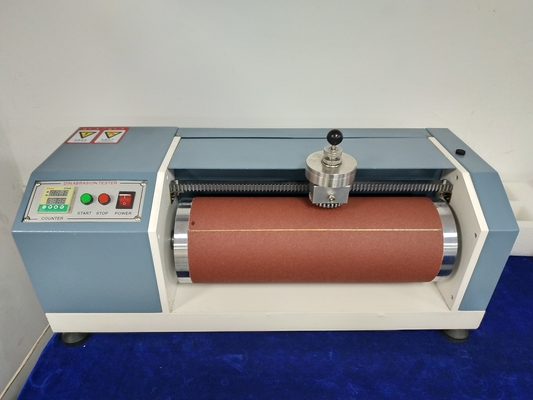

SATRA TM147 Din Rubber Abrasion Resistance Tester Shoes Wear Test Machine

Large Image : SATRA TM147 Din Rubber Abrasion Resistance Tester Shoes Wear Test Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO , CE
Model Number:	ZL-3004

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	SATRA TM147 Din Rubber Abrasion Resistance Tester Shoes Wear Test Machine will be Packaged within safety wooden case (fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	100 SET / MONTH

Contact Now

Detailed Product Description

Power:	Electronic	Usage:	Abrasion Testing For Rubber / Shoes Etc
Abrasion Stroke:	40 ± 0.2M	Horizontal Displacement:	4.2mm / Rotate
Load:	2.5 N	Color:	White / Blue
Voltage:	220V 50HZ	Warranty:	12 Month
Name:	SATRA TM147 Din Rubber Abrasion Resistance Tester Shoes Wear Test Machine
Highlight:	rubber testing equipments , rubber hardness tester

SATRA TM147 DIN Rubber Abrasion Resistance Tester

Professional testing equipment for evaluating the abrasion resistance of elastic materials, rubber, tires, conveyor belts, shoe soles, leather, and synthetic leather materials.

Product Overview

The DIN abrasion test device delivers high efficiency, excellent reproducibility, and easy operation for testing material abrasion resistance. It assesses material surface condition through weight, volume, and thickness measurements after controlled friction testing.

Testing Function

Evaluates material surface friction using specialized sandpaper under controlled conditions. After specified friction duration, the machine assesses material surface weight, volume, and thickness changes to determine abrasive characteristics.

Compliance Standards

GB/T9867, GB/T 20991, GB/T 26703
EN ISO 20344, ISO 4649
DIN 53516, BS 903:A9
SATRA TM147

Industry Applications

Ideal for footwear, clothing, luggage, handbag industries, research laboratories, commodity inspection, arbitration, and technical supervision departments.

Technical Parameters

Parameter	Specification
Model	ZL-3004 AT150 DIN Rubber Materials Friction Tester
Idler	150mm
Abrasion Stroke	40 ± 0.2M
Horizontal Displacement	4.2mm / rotate
Stroke	20m/40m presetting
Grips Lateral Displacement	4.2 ± 0.04rpm
Idler Wheel Speed	40 ± 1cpm
Measuring Way	Auto/Manual presetting
Load	2.5 ± 0.1N, 5 ± 0.1N, 10 ± 0.1N
Specimen Size	dia 16mm, thickness at least 6mm

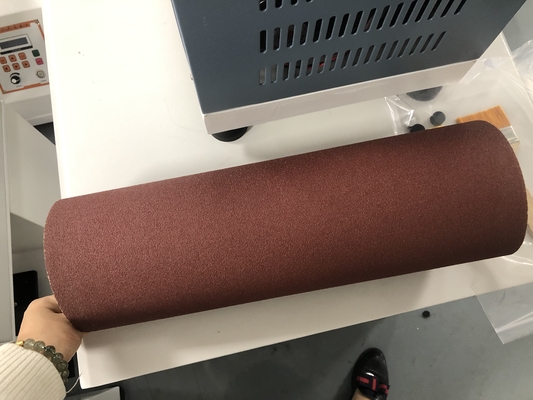

Emery Cloth Specification	60 #, seam is less than 2mm
Sand Paper	60 Germany
Dimension	956631cm
Power	220v 50hz

Machine Specifications

Specification	Value
Test-arm Weight	250 ± 5 (g)
Testing Load	2.5N, 7.5N
Diameter Abrasive Wheel	dia 150 ± 450L (mm)
Emery Cloth	60 #, 425 ±473 ±1.5 (mm)
Wheel Speed	40 ± 1RPM
Shift Screw	6 teeth / inch
Limit Rotation	85 rotate
Set Rotation	84 rotate (about 40M)
Return Form	Electric automatic reset
Drive Power	40W; 1 / 30
Power	220V 50HZ
Machine Dimensions	600 ±330 ±420 (mm)
Machine Weight	75kg
