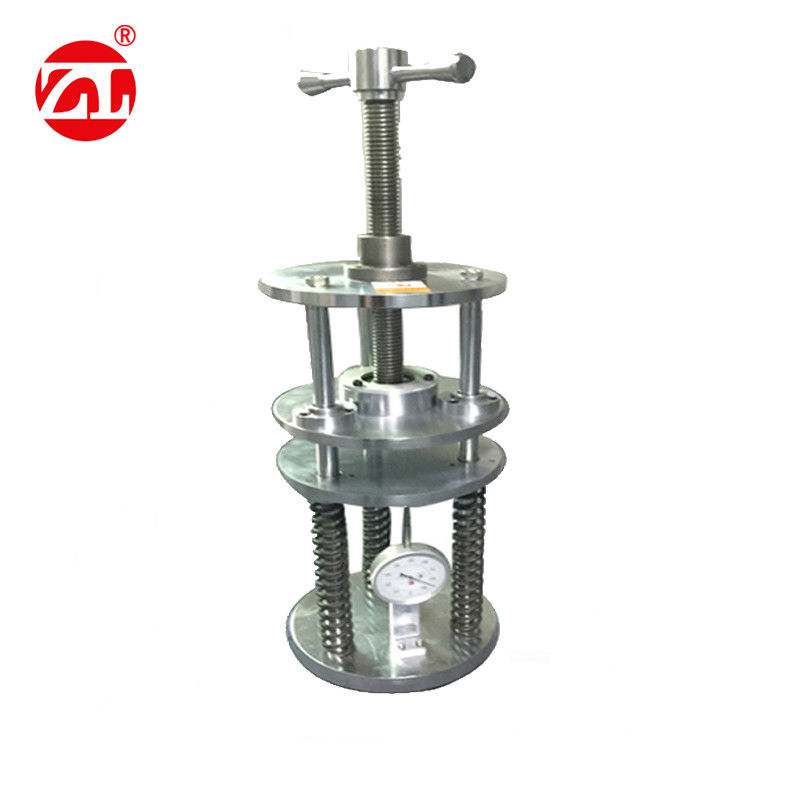

500kgf Rubber Compression Resilience Testing Machine , Rubber Compression Tester

Large Image : 500kgf Rubber Compression Resilience Testing Machine , Rubber Compression Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3026

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	packaged within safety wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	500 set per monnth

Contact Now

Detailed Product Description

Power:	220v 50hz	Material:	Sheet Metal
Number Of Specimen:	3~27 Pcs	Max Capacity:	500kgf
Dialgage:	50mm	Warranty:	12 Month
Highlight:	rubber tensile testing machine , rubber hardness tester

500kgf Rubber Compression Resilience Testing Machine

Professional rubber compression tester for measuring rebound resilience performance of rubber materials after specified time and pressure conditions.

Technical Specifications

Parameter	Specification
Product Name	Rubber Compress Rebound Resilience Tester
Number of Specimens	3~27 pcs
Maximum Capacity	500kgf
Dial Gauge	50mm
Measurement Thickness	9.52mm
Specimen Size (Method 1)	Foam: Ø29.0 mm, Non-foaming material: Ø14.5 mm
Specimen Size (Method 2)	Foam: 25.4 × 25.4 mm; Non-foaming material: Ø12.7 mm
Dimensions	Ø23cm, H 65cm
Weight	40kg

Compliance Standards

Meets FIA304 and SATRA-PM64 testing standards for rubber compression resilience evaluation.

Application & Testing Method

The Rubber Compression Rebound Tester evaluates the rebound performance of rubber materials after specific time and pressure conditions. Standard test pieces are distributed on the test plate and clamped between two plates. After the prescribed time and cooling period, the center thickness of the test film is measured, and compression resilience is calculated using the standard formula.

Frequently Asked Questions

Warranty Statement

Zhongli warrants all products manufactured by Zhongli to be free from defects in material and workmanship under normal use for a period of 12 months or 36 months after the date of original purchase. If repair or replacement is not possible or practical, Zhongli warranty covers ONLY the product itself. Zhongli assumes no liability for labor costs, installation costs, or other losses. Warranty rights are honored only when the product has been installed and used properly as deemed by Zhongli.

Return Policy

All order shipments leave our factory complete and in working order. Customers must report any damage within 7 days of receipt by sending digital photographs (.JPG) of damaged items. Customers must retain damaged merchandise, package, and shipping containers until the claim is settled. Damage in transit is the sole responsibility of the carrier, and claims beyond this 7-day period will not be deemed valid by ZhongLi.

Breakage & Returns

Zhongli accepts returns for a refund within 30 days of shipment. Returns must be first acknowledged by ZhongLi PRIOR to return. Contact the related salesperson in charge. All packages sent to Zhongli MUST have the initial sales invoice number clearly printed on the outside. Returns must be in original packaging with sufficient packing material. Modified or installed items will not be accepted for return.

After-Sales Service

24/7 technical support
12 months comprehensive warranty
On-site engineer service available
Life-long maintenance service

Thank you for your support of Zhongli quality testing equipment!
