Rubber Abrasion Resistance Tester , AT150 DIN Rubber Materials Friction Test Equipment

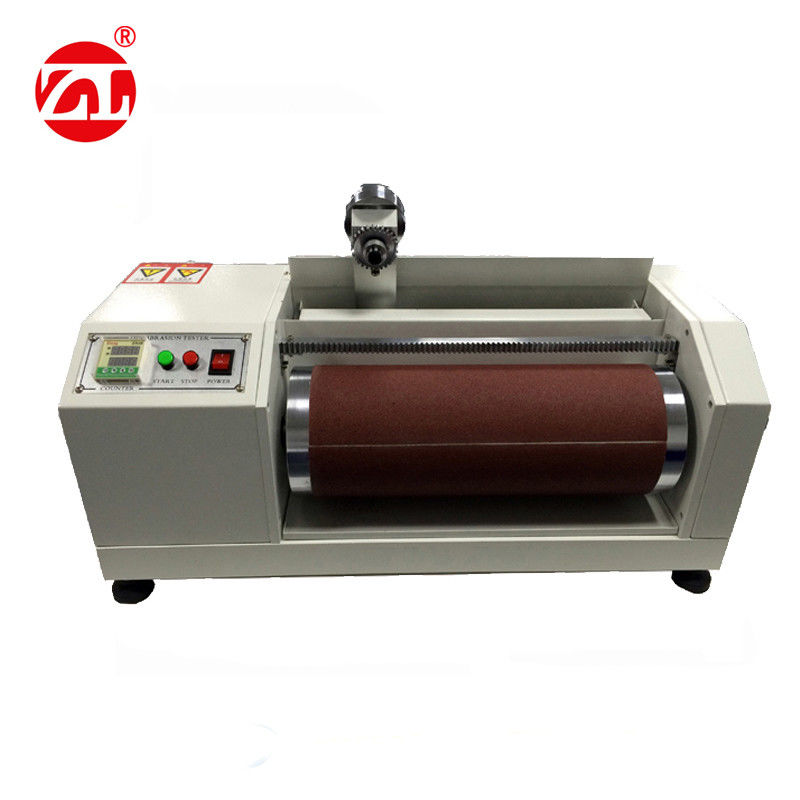

Large Image : Rubber Abrasion Resistance Tester , AT150 DIN Rubber Materials Friction Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO , CE
Model Number:	ZL-3004

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Packaged within safety wooden case (fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	100 SET / MONTH

Contact Now

Detailed Product Description

Power:	Electronic	Usage:	Abrasion Testing For Rubber / Shoes Etc
Abrasion Stroke:	40 ± 0.2M	Horizontal Displacement:	4.2mm / Rotate
Load:	2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N	Color:	White / Blue
Voltage:	220V 50HZ	Warranty:	12 Month
Highlight:	rubber tensile testing machine , rubber testing equipments

Rubber Abrasion Resistance Tester - AT150 DIN Rubber Materials Friction Test Equipment

The AT150 DIN Rubber Abrasion Resistance Tester is a precision instrument designed to evaluate the friction resistance of material surfaces using specialized sandpaper. After controlled friction testing, the equipment assesses material surface conditions through weight, volume, and thickness measurements to determine abrasive characteristics.

Technical Specifications

Parameter	Specification
Model	ZL-3004 DIN abrasion resistance tester
Idler	150mm
Abrasion Stroke	40 ± 0.2M
Horizontal Displacement	4.2mm / rotate
Stroke	20m/40m presetting
Grips Lateral Displacement	4.2 ± 0.04rpm
Idler Wheel Speed	40 ± 1cpm
Measuring Way	Auto/Manual presetting
Load	2.5 ± 0.1N, 5 ± 0.1N, 10 ± 0.1N
Specimen Size	dia 16mm, thickness at least 6mm
Emery Cloth Specification	60 #, seam is less than 2mm
Sand Paper	60 Germany
Dimension	956631cm
Power	220v 50hz

Primary Functions

This DIN abrasion tester evaluates material surface friction using specific sandpaper. After predetermined friction duration, it assesses material surface conditions through weight, volume, and thickness measurements to determine abrasive characteristics.

The instrument offers high efficiency, excellent reproducibility, and easy operation for testing abrasive properties of various materials including elastic materials, rubber, tires, conveyor belts, transmission belts, soles, synthetic leather, leather, and other materials.

Compliance Standards

GB/T9867
GB/T 20991
GB/T 26703
EN ISO 20344
ISO 4649
DIN 53516
BS 903:A9
SATRA TM147

Industry Applications

Applied for testing leather performance in footwear, apparel, luggage, and handbag industries. Suitable for research laboratories, commodity inspection, arbitration, and technical supervision departments.

Machine Specifications

Parameter	Specification
Test-arm Weight	250 ± 5 (g)
Testing Load	2.5N, 7.5N
Diameter Abrasive Wheel	dia 150 ± 450L (mm)
Emery Cloth	60 #, 425 ±473 ±1.5 (mm)
Wheel Speed	40 ± 1RPM
Shift Screw	6 teeth / inch
Limit Rotation	85 rotate
Set Rotation	84 rotate (about 40M)
Return Form	Electric automatic reset
Drive Power	40W; 1 / 30
Power	220V 50HZ
Machine Dimensions	600 ±330 ±420 (mm)
Machine Weight	75kg
